Removing Window Regulator Motor

WARNING: Electrically moved components
  • Danger of limbs being trapped or severed
  1. → Switch off electric power to drive motor.
  2. → Make sure it does not switch on again.
  3. → Check that there is no electric charge.

Information

The end positions of the power windows are deleted from the control unit when the electric connectors are disconnected and connected.

  1. Release and unplug electric plug connection -2-  .
    G15237375Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  2. Unclip line bracket -3-  .

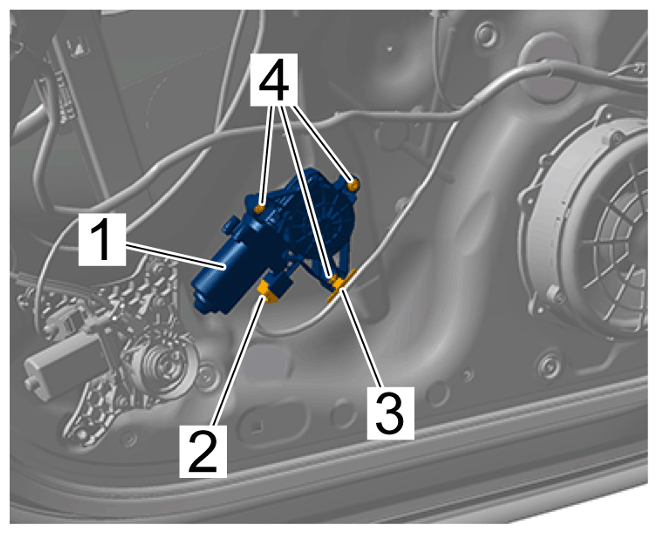

    G15237376Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric line

  3. Unscrew screws -4-  for window regulator motor -1-
    G15237377Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  4. Pull power window motor out of the splines.
