Preliminary Work

Remove front window channel seal.
- > 644819 REMOVING AND INSTALLING FRONT WINDOW CHANNEL SEAL
Remove front door panel.
- > 705919 REMOVING AND INSTALLING FRONT DOOR PANEL
Information

The cover must be replaced following removal.
Remove cover -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

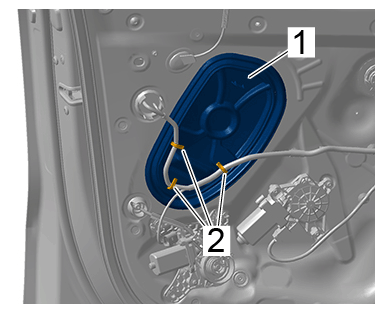

Cover
1. 3.1 Disengage electric wire harness from holders -2- .
2. 3.2 Unclip cover -1- .
Remove rubber sleeves -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

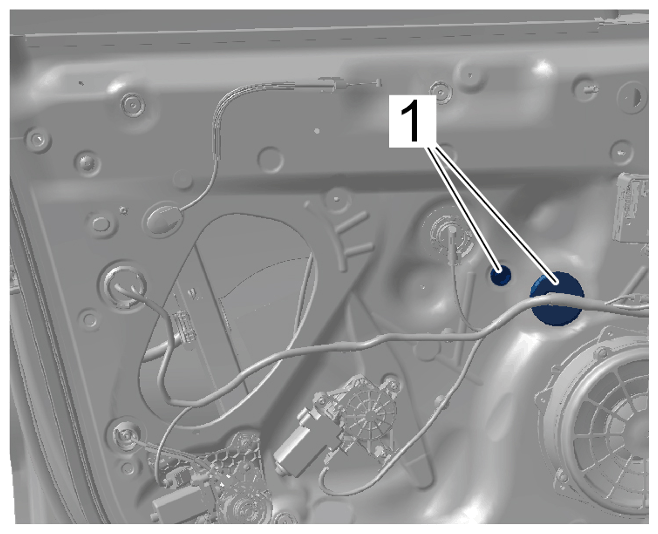

Rubber sleeves
