Removing Front Corner Window Pane

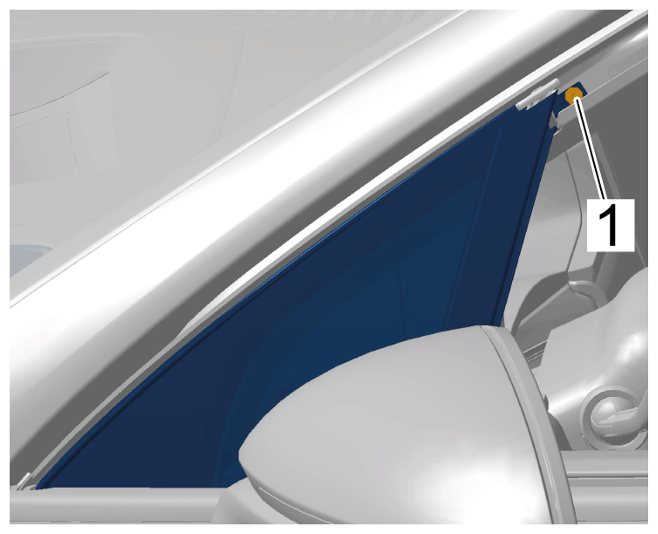

  1. Unscrew outer screw -1-  .
    G15237322Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Outer screw

    Information

    The screws are located in the inner area of the door. Pull off the sticker in order to unscrew the screws and stick it back on again exactly after screwing in the screws.

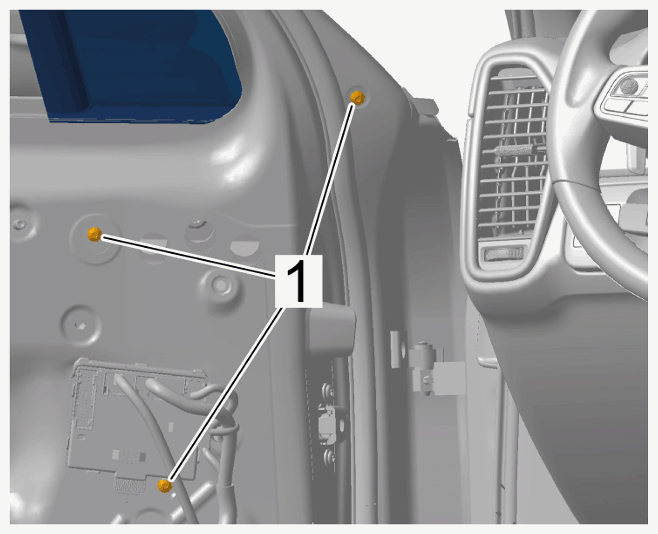

  2. Pull off sticker and unscrew inner screws -1-  .
    G15237323Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Inner screws

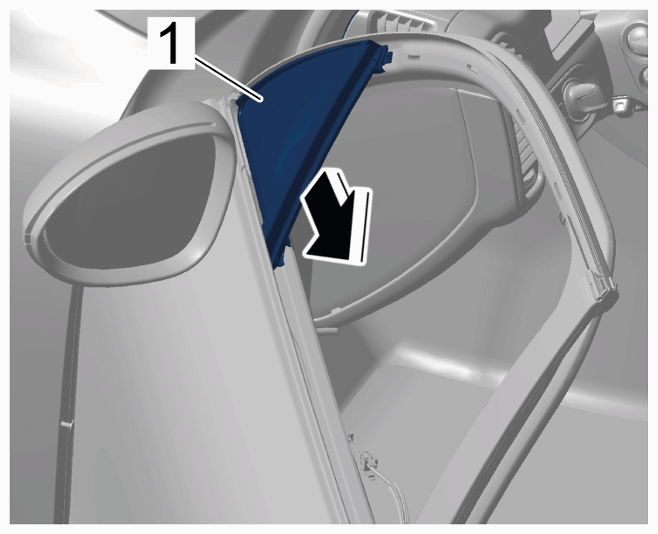

  3. Slide front corner window pane -1-  out of the corner window -Arrow-  .
    G15237324Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Corner window

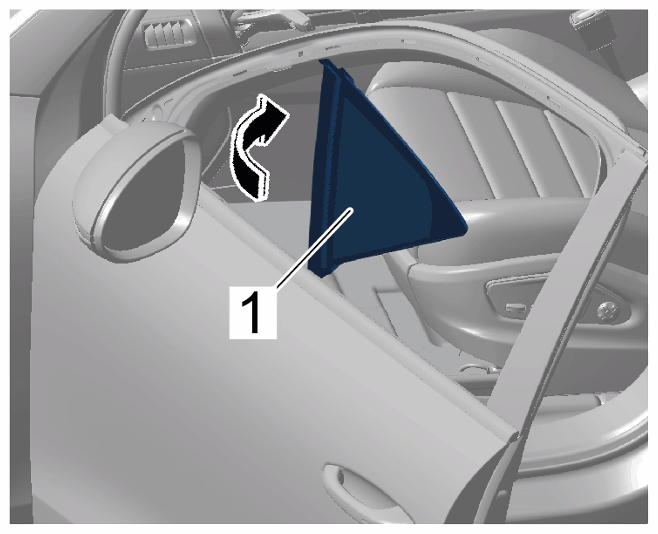

  4. Turn front corner window pane -1-  (-Arrow-  ).
    G15237325Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Corner window pane

  5. Remove front corner window pane from front door
