Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

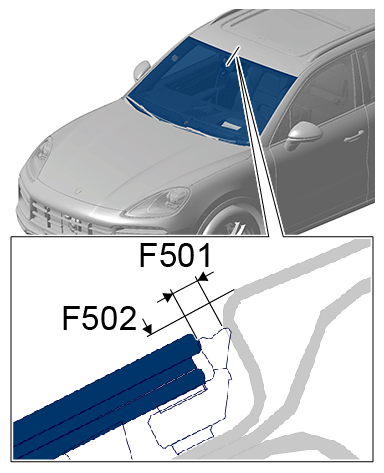

| Windscreen to roof (F501) | Gap dimension | 2.9 mm | |||
|
Gap dimension |
|||||
| Windscreen to roof (F502) | Offset | Gap dimension | 2 mm | +/- 0.5 mm | |
|
Gap dimension |
|||||
| Cutting cord, total length | approx. 6 turns of the reel | Length | 6 m | ||
| Applying adhesive | Application depth | 15 mm |
