Preliminary Work

Remove interior rear-view mirror.
- > 682719 REMOVING AND INSTALLING INTERIOR REAR-VIEW MIRROR
Remove front camera.
- > 963819 REMOVING AND INSTALLING FRONT CAMERA
Remove rain sensor.
- > 921219 REMOVING AND INSTALLING RAIN SENSOR
Remove mobile communication antenna.
- > 914719 REMOVING AND INSTALLING MOBILE COMMUNICATION ANTENNA
Remove GPS antenna.
- > 911319 REMOVING AND INSTALLING GPS ANTENNA
Remove WiFi antenna.
- > 918519 REMOVING AND INSTALLING WIFI ANTENNA
Secure electric lines -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

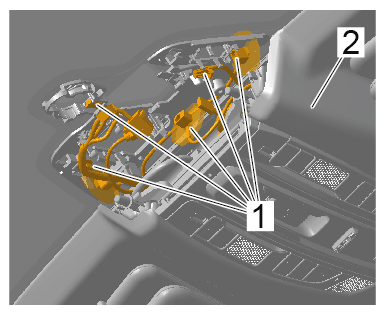

Electric lines
1. 7.1 Unclip electric lines -1- from windscreen.
2. 7.2 Secure electric lines -1- to the headliner -2- using adhesive tape.
Remove upper part of A-pillar trim panel at the left and right.
- > 705719 REMOVING AND INSTALLING A-PILLAR TRIM PANEL
Remove cover.
- > WM, 508719 REMOVING AND INSTALLING COWL PANEL COVER
