Home >> Porsche >> 2019 >> Cayenne S >> Repair and Diagnosis >> Body & Frame >> Door Locks >> 96 Lights, Lamps, Switches-Interior, Anti-Theft Protection -- 9YA - Cayenne (9YA) >> WM, 966519 Removing And Installing Alarm Siren >> Preliminary Work

Preliminary Work

  1. Remove cowl panel cover.

    > WM, 508719 REMOVING AND INSTALLING COWL PANEL COVER

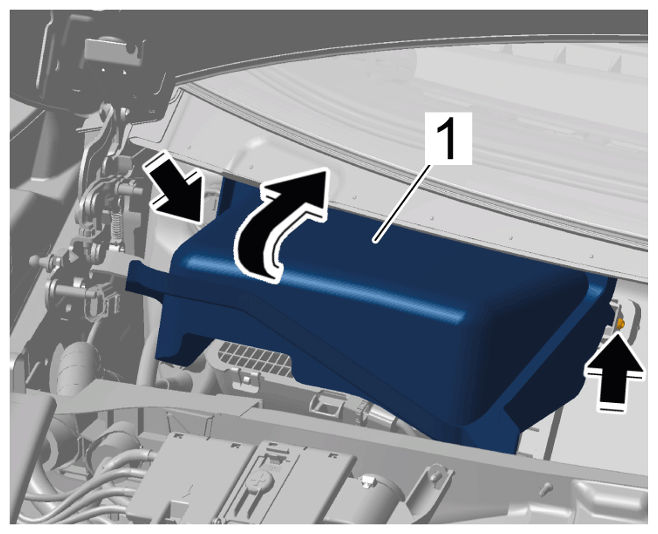

  2. Open cover on cold air intake -1-  and unclip it -Arrows-  .
    G15231397Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cold air intake cover
