Disassembling Remote Control

  1. Release lock on emergency key and pull emergency key out of the remote control -arrow-  .
    G15231391Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Emergency key

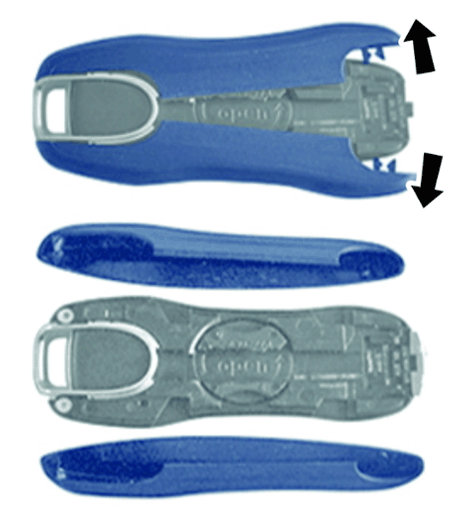

  2. Unclip and remove side faces at the front of the key -Arrows-  .
    G15231392Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Side faces

  3. Open the battery cover -Arrow-  and remove the battery.
    G15231393Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover
