Removing Reading Light

  1. Release and disconnect electric plug connection -1-  from reading light -2-  .
    G15231389Courtesy of PORSCHE CARS NORTH AMERICA, INC.

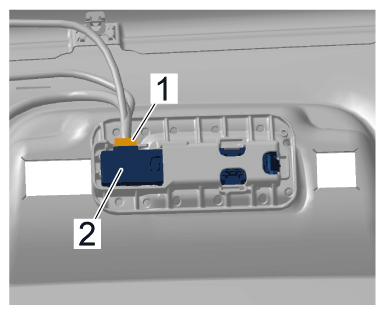

    Electric plug connection

  2. Release locking mechanism on reading light -1-  using a small screwdriver and remove reading light -1-  from the headliner.
    G15231390Courtesy of PORSCHE CARS NORTH AMERICA, INC.

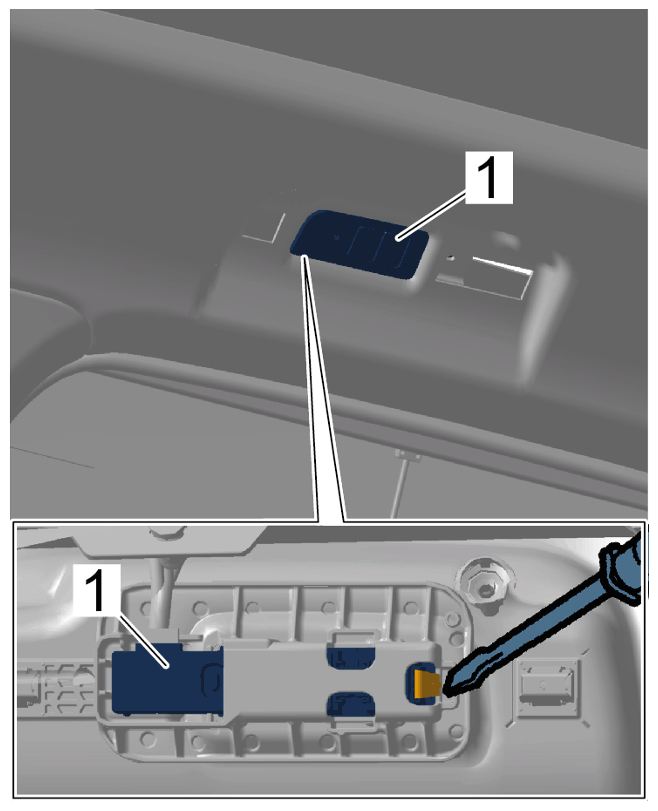

    Reading light
