Removing Glove Box Light

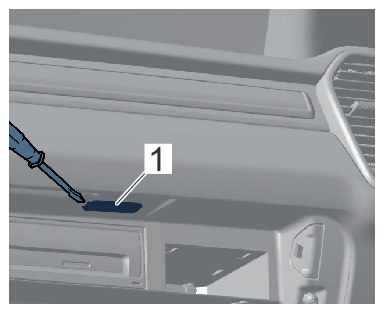

  1. Unclip glove compartment light -1-  using a suitable tool.
    G15231386Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Glove box light

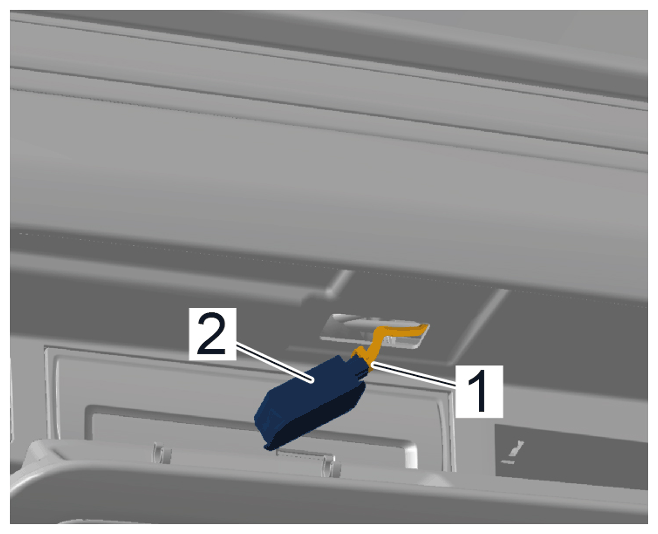

  2. Release and disconnect electric plug connection -1-  and remove glove compartment light -2-  .
    G15231387Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection
