Removing Luggage Compartment Light In Side Trim Panel

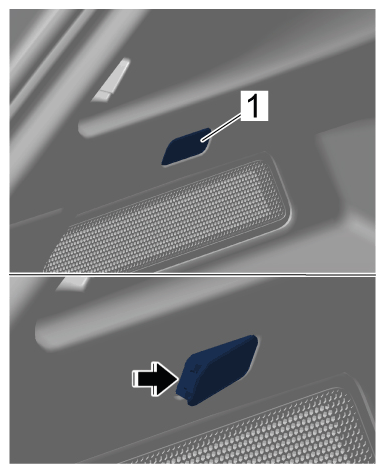

  1. Unclip luggage compartment light in side trim panel -1-  using a suitable tool -Arrow-  .
    G15231382Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Luggage compartment light in side trim panel

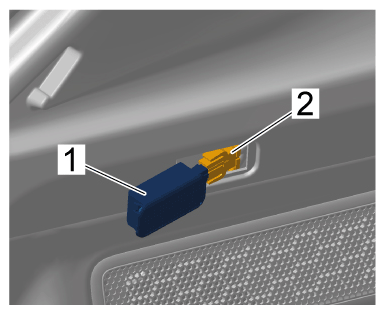

  2. Release and unplug electric plug connection -2-  .
    G15231383Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  3. Remove luggage compartment light in side trim panel -1-  .
    G15231384Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Luggage compartment light in side trim panel
