Subsequent Work

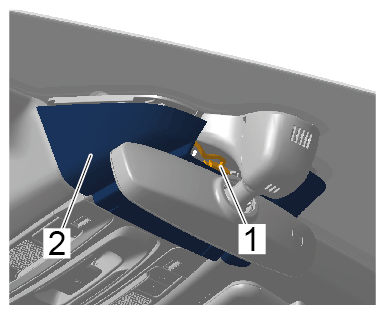

  1. Connect and lock electric plug connection -1-  on camera cover -2-  .
    G15231369Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

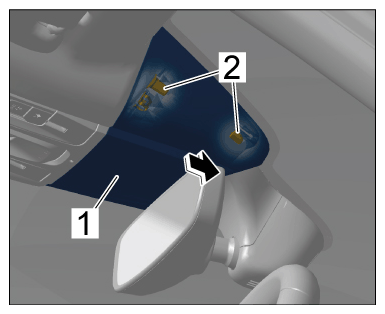

  2. Push cover for camera -1-  into the guide lugs -2-  and clip it in.
    G15231370Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover on camera

  3. Calibrate front camera.

    > 963855 REPLACING FRONT CAMERA
