Removing Front Camera

  1. Release and unplug electric plug connections -1-  .

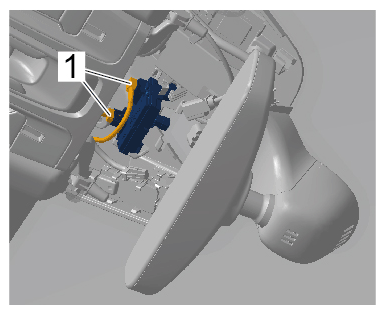

    G15231367Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections on front camera

  2. Press on clamp -1-  slightly and remove front camera -2-  in a downward direction.

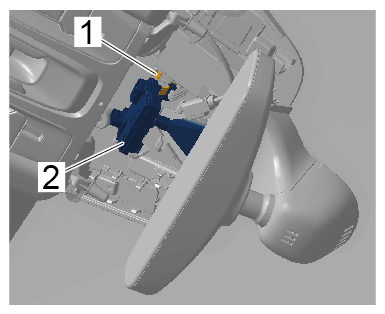

    G15231368Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clamp on front camera
