Removing Operator Control Unit In (Front) Centre Console

Unscrew fastening screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

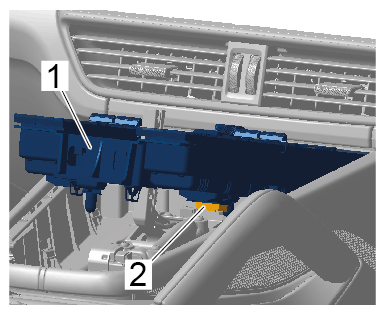

Lift operator control unit -1- at the rear until the electric plug connection -2- is accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Operator control unit
Release and disconnect electric plug connection -2- and remove operator control unit -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection
