Removing Door Warning Light

Information

Shown on the left side.

Right side same as left side.

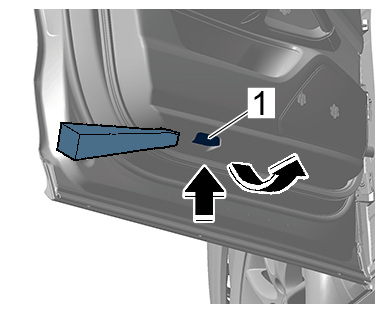

1. Unclip door warning light -1-  from below using a plastic spatula -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Door warning light

2. Remove door warning light -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

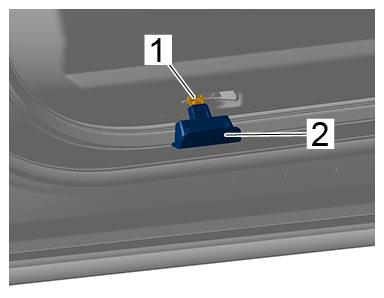

   Electric plug connection for door warning light

   1. 2.1  Release and unplug electric plug connection -1-  .
   2. 2.2  Remove door warning light
