Removing FOOTWELL Light

  1. Remove footwell light -1-  .

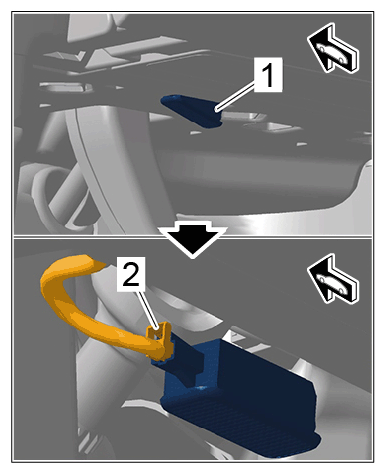

    G15231353Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing footwell light

    1. 1.1  Unclip footwell light -1-  using a plastic wedge.
    2. 1.2  Release and unplug electric plug connection -2-  .
    3. 1.3  Remove footwell light -1-  .
