Removing Glove Compartment Light Contact Switch

Information

The glove compartment light contact switch and damper element form one component and cannot be removed separately.

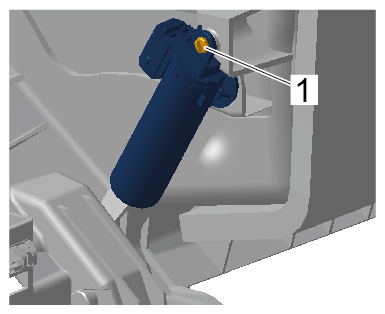

1. Remove bolts -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bolt

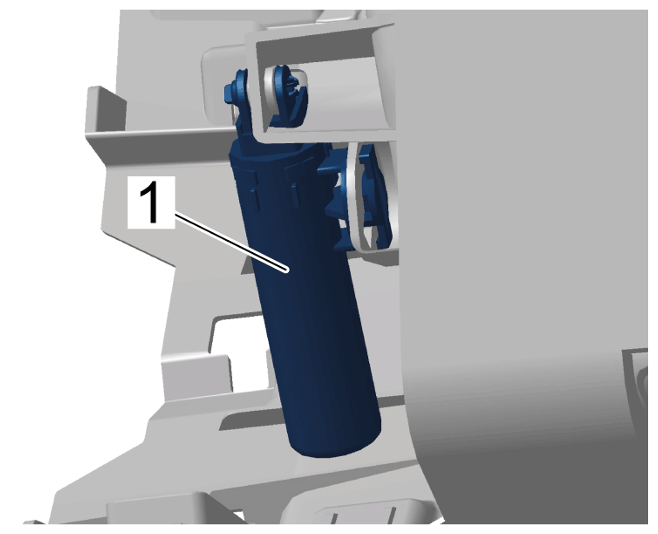

2. Turn glove compartment light contact switch -1-  with damper element until glove compartment light contact switch -1-  with damper element can be removed.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Glove compartment light contact switch

3. Remove glove compartment light contact switch -1-  with damper element.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Glove compartment light contact switch
