7X Body-Equipment Inside General (Wagon) -- 9YA - Cayenne (9YA)
>>
WM, 7X00IN Technical Values
>>
Trim Panel For Dashboard (Driver's Side)
Trim Panel For Dashboard (Driver's Side)
Location
Description
Type
Basic value
Tolerance
Screw securing dashboard trim panel (driver's side) to instrument panel
Item 1
Tightening torque
3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

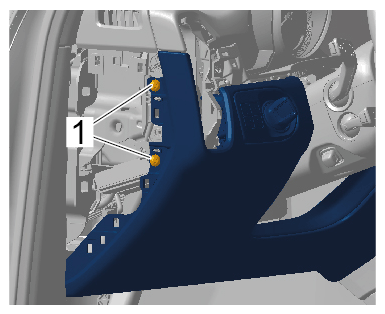

Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

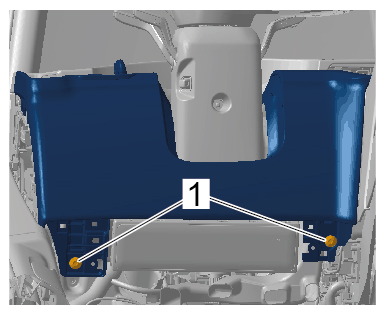

Side screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
