Technical Values: Overview

Location Description Type Basic value Tolerance 1 Tolerance 2
Screws for armrest Item 1 Tightening torque 2.3 Nm (1.6 ftlb.)
Screws for armrest Item 2 Tightening torque 2.8 Nm (2.1 ftlb.)

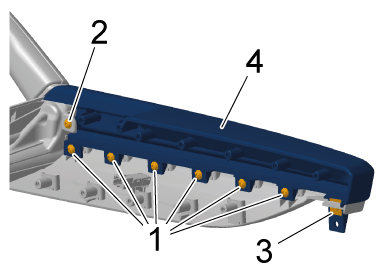

G15240111Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Armrest
Screws for armrest trim Item 2 Tightening torque 2.3 Nm (1.6 ftlb.)

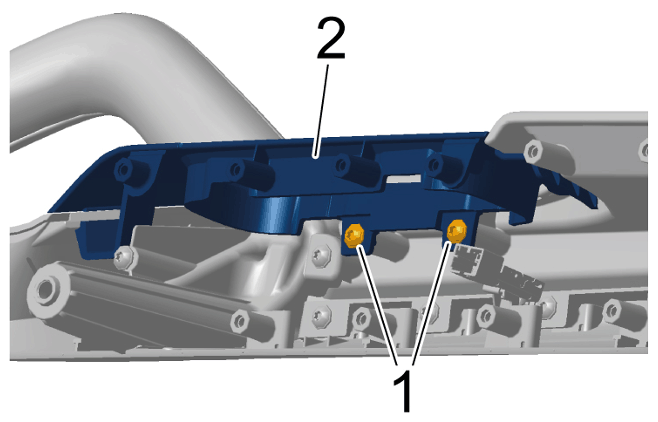

G15240112Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for armrest trim

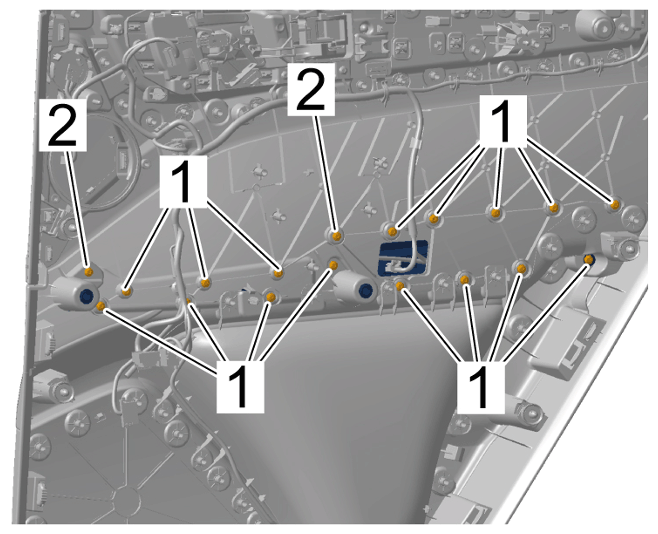

Screws for armrest Item 1 Tightening torque 2.3 Nm (1.6 ftlb.)
Screws for armrest Item 2 Tightening torque 2.8 Nm (2.1 ftlb.)
G15240113Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screws for door panel Item 1 Tightening torque 4.5 Nm (3.25 ftlb.)

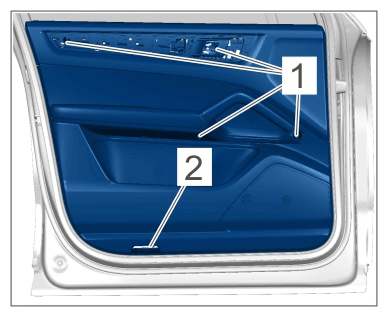

G15240114Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on door panel
Screw on door panel Item 2 Tightening torque 2.5 Nm (1.75 ftlb.)
G15240115Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on door panel

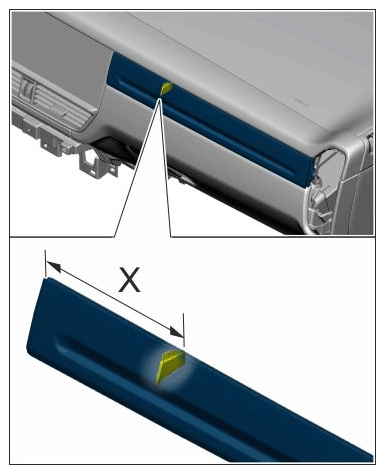

Position of safety hooks   Distance 115 mm
G15240116Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position of safety hooks

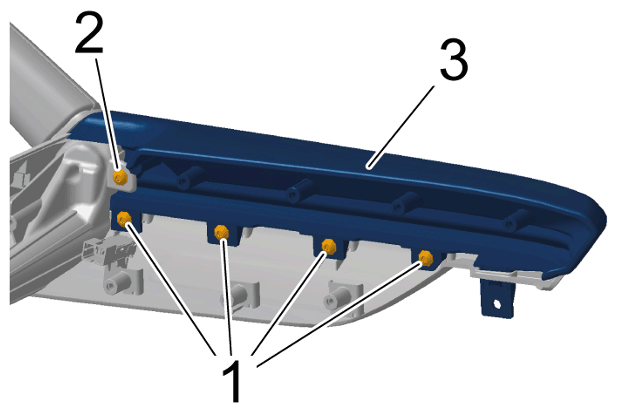

Screws for armrest Item 1 Tightening torque 2.3 Nm (1.7 ftlb.)
Screws for armrest Item 2 Tightening torque 2.8 Nm (2.1 ftlb.)
G15240117Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for armrest

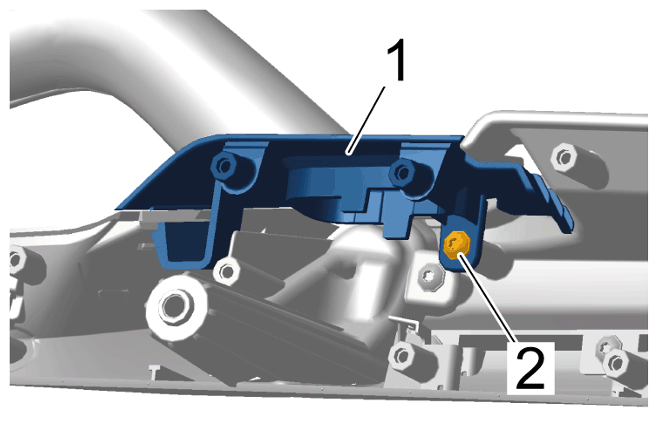

Screw for armrest trim Item 2 Tightening torque 2.3 Nm (1.7 ftlb.)
G15240118Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for armrest
Screws for armrest Item 1 Tightening torque 2.3 Nm (1.7 ftlb.)
Screws for armrest Item 2 Tightening torque 2.8 Nm (2.1 ftlb.)
G15240119Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

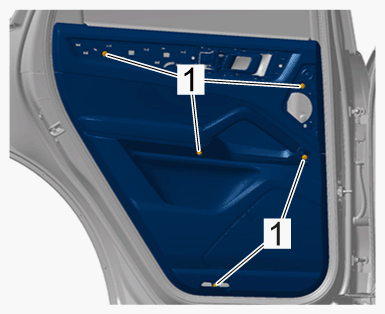

Screws for door panel Item 1 Tightening torque 4.5 Nm (3.3 ftlb.)
G15240120Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

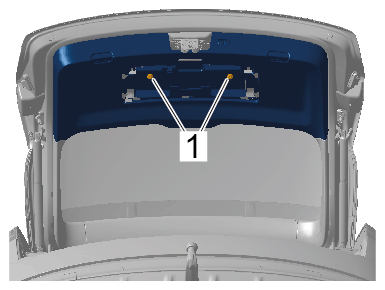

Screws for trim panel for rear lid, bottom Item 1 Tightening torque 2 Nm (1.5 ftlb.)
G15240121Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

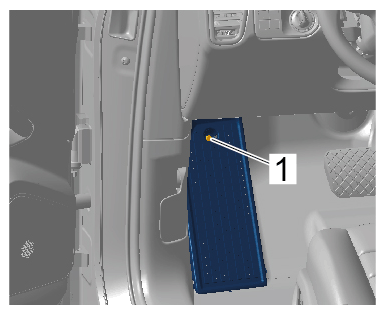

Screw for footrest Item 1 Tightening torque 3 Nm (2 ftlb.)
G15240122Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Screw securing dashboards trim panel (driver's side) to instrument panel Item 1 Tightening torque 3 Nm (2 ftlb.)

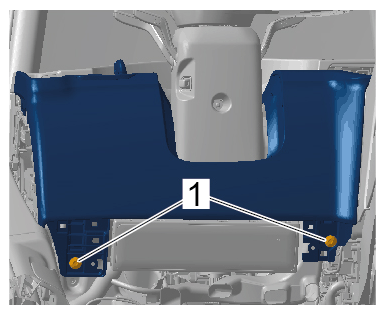

G15240123Courtesy of PORSCHE CARS NORTH AMERICA, INC.

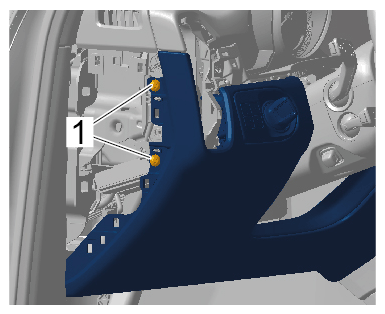

Screws
G15240124Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side screws

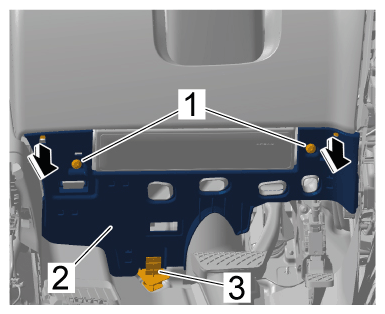

Screw securing dashboard cover (driver's side) to instrument panel Item 1 Tightening torque 3 Nm (2 ftlb.)
G15240125Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Dashboard cover (on driver's side)

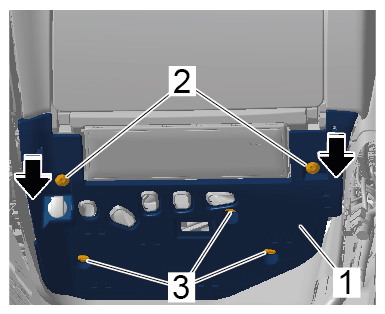

Screw securing dashboard cover (passenger's side) to instrument panel Item 2 Tightening torque 3 Nm (2 ftlb.)
G15240126Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Dashboard cover (passengers side)

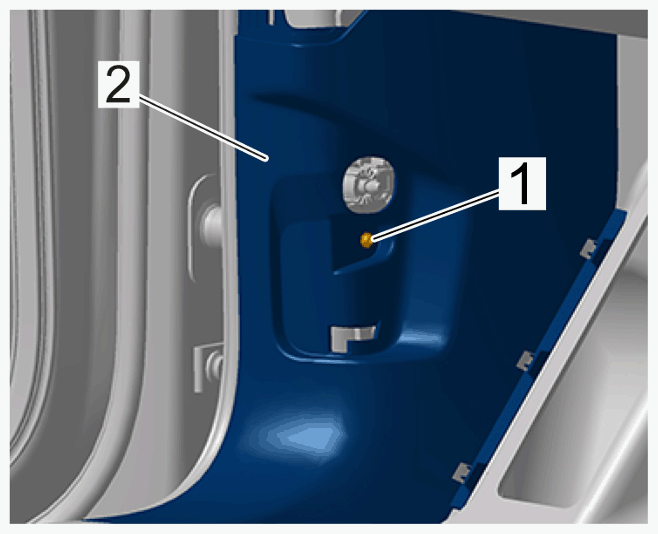

Screw for A-pillar trim panel (lower part) Item 1 Tightening torque 2 Nm (1.5 ftlb.)
G15240127Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A-pillar trim panel (lower part)

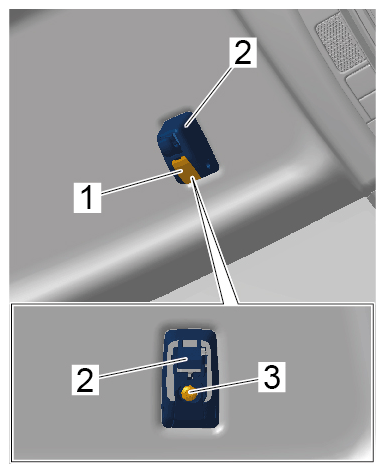

Screw for bracket Item 3 Tightening torque 0 Nm (0 ftlb.)
G15240128Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on sun visor bracket

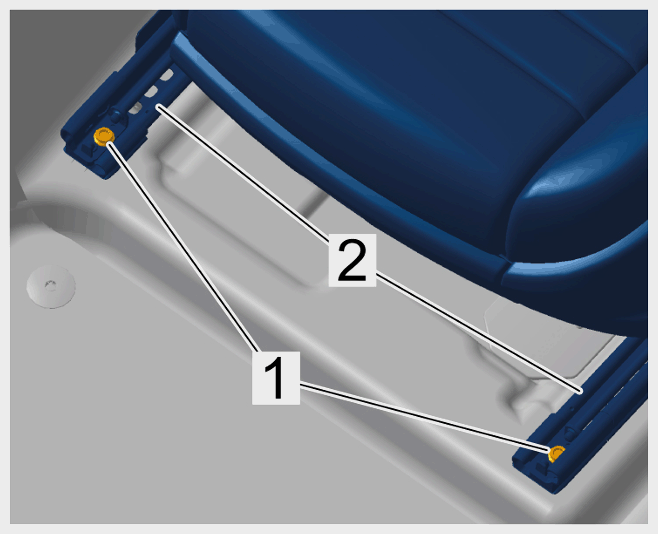

Front screws Item 1 Tightening torque 50 Nm (37 ftlb.)
G15240129Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front screws

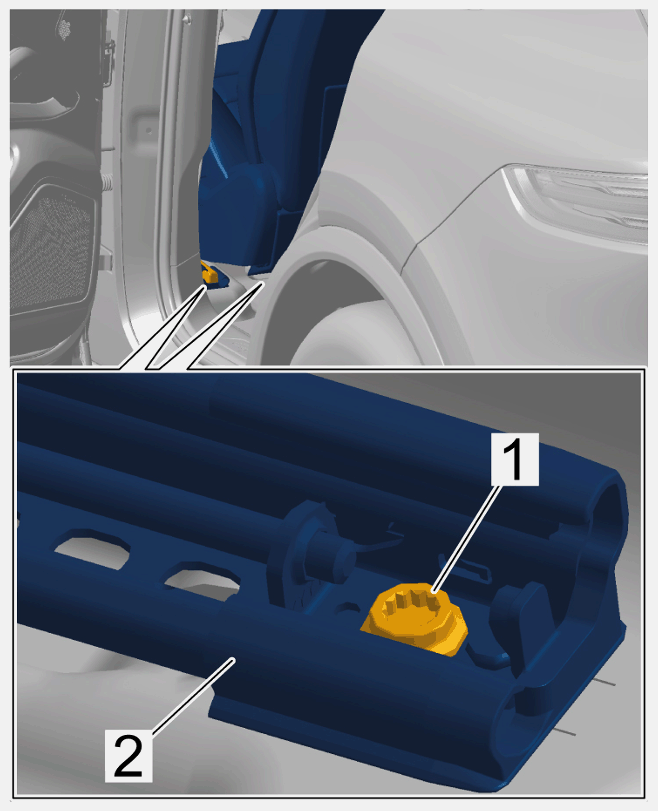

Rear screws Item 1 Tightening torque 50 Nm (37 ftlb.)
G15240130Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear screws

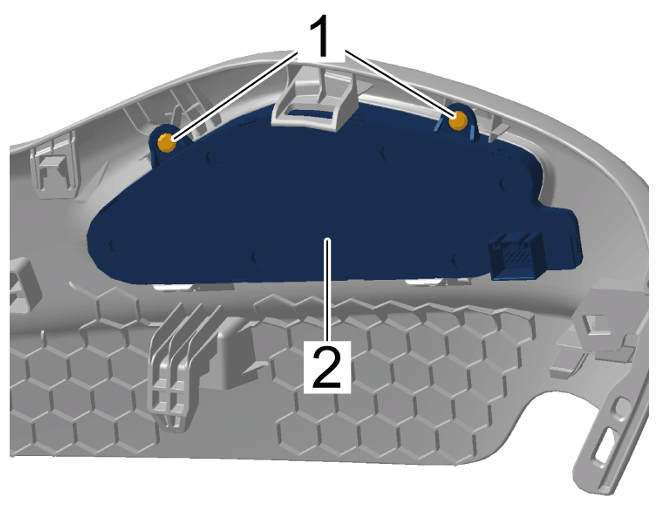

Screw on switch for seat adjustment, front Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15240131Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front seat adjustment switch

Tightening torque for screw securing fire extinguisher holder to tubular frame holder Item 3 Tightening torque 8 Nm (6 ftlb.)
G15240132Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fire extinguisher holder

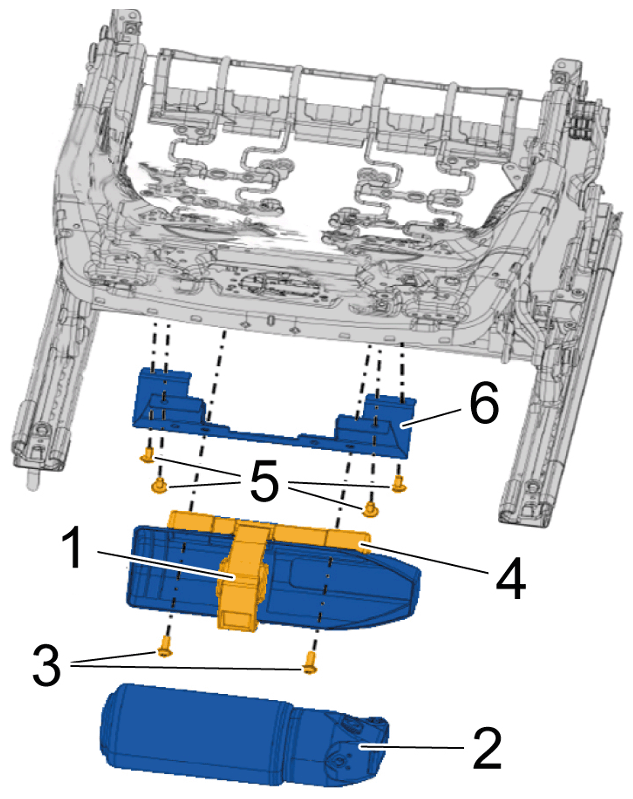

Screw securing wire frame holder to seat frame Item 5 Tightening torque 5 Nm (5.5 ftlb.)
G15240133Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fire extinguisher holder
Screw securing fold-out compartment to front seat frame Item 1 Tightening torque 8 Nm (6 ftlb.)

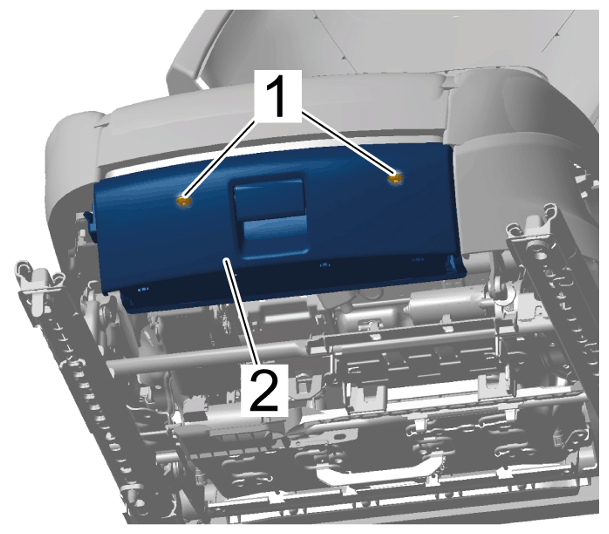

G15240134Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Storage compartment
Screw securing front seat to seat frame Item 1 Tightening torque 8 Nm (6 ftlb.)
G15240135Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front cover

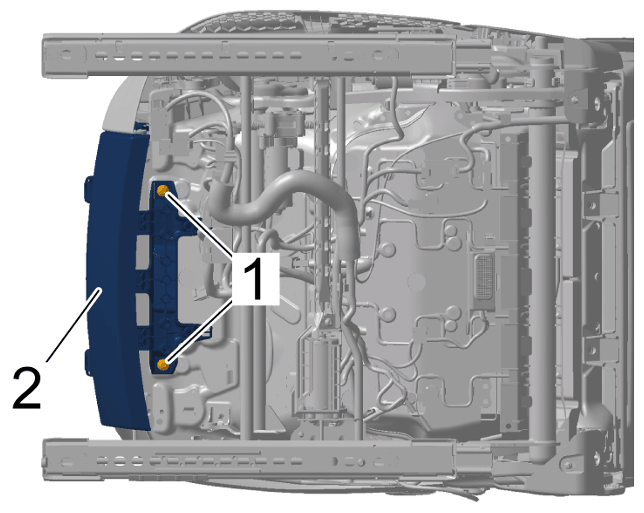

Screw securing seat-surface extension to seat frame Item 1 Tightening torque 8 Nm (6 ftlb.)
G15240136Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat surface extension

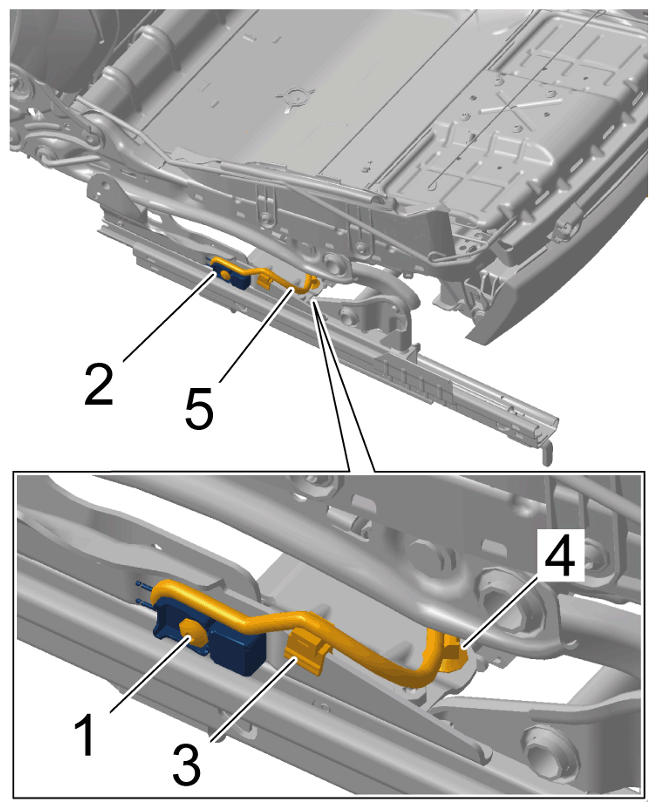

Screw securing sensor to front seat frame Item 1 Tightening torque 1.1 Nm (0.8 ftlb.)
G15240137Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness for sensor

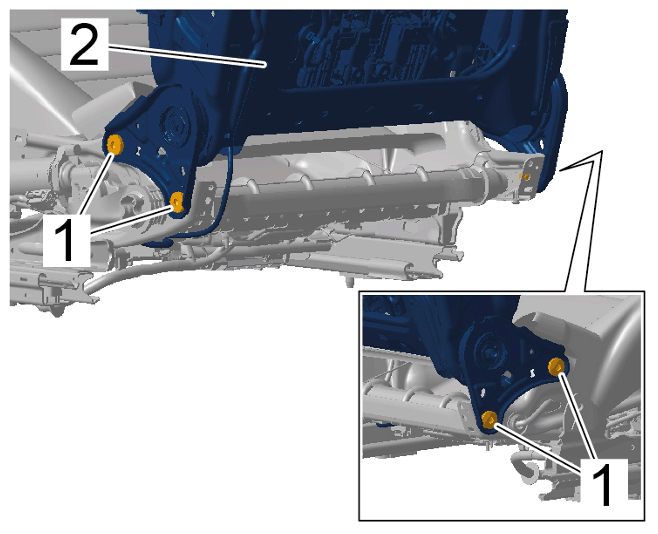

Screw securing backrest frame to seat frame Item 1 Tightening torque 33 Nm (25 ftlb.)
G15240138Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest frame

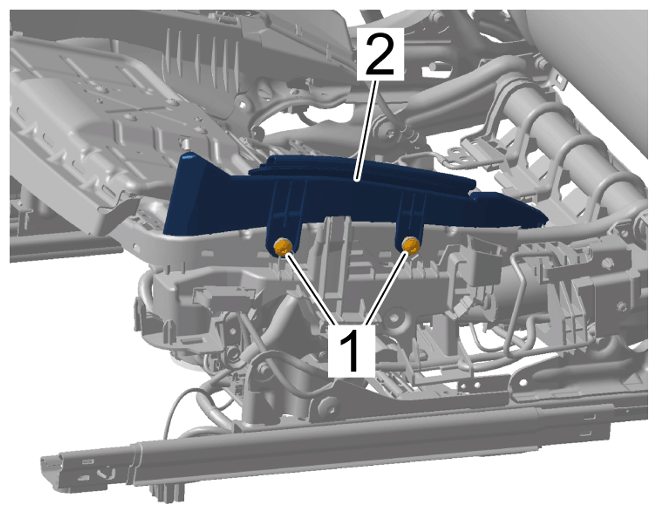

Screw securing air cushion supporting seat to seat frame Item 1 Tightening torque 3 Nm (2.5 ftlb.)
G15240139Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air cushion for seat

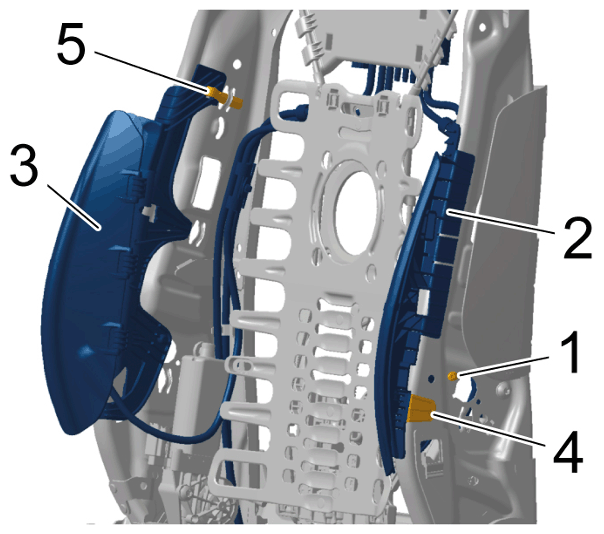

Tightening torque for screw securing air cushion for backrest to backrest frame Item 1 Tightening torque 2.3 Nm (1.8 ftlb.)
G15240140Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air cushion for backrest
Screws for rear seat frame Item 1 Tightening torque 50 Nm (37 ftlb.)

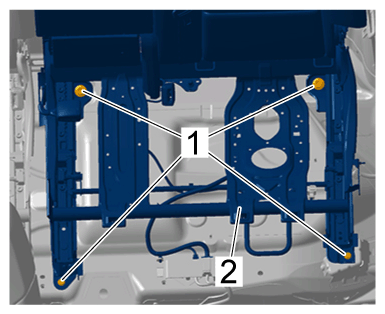

G15240141Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear seat frame

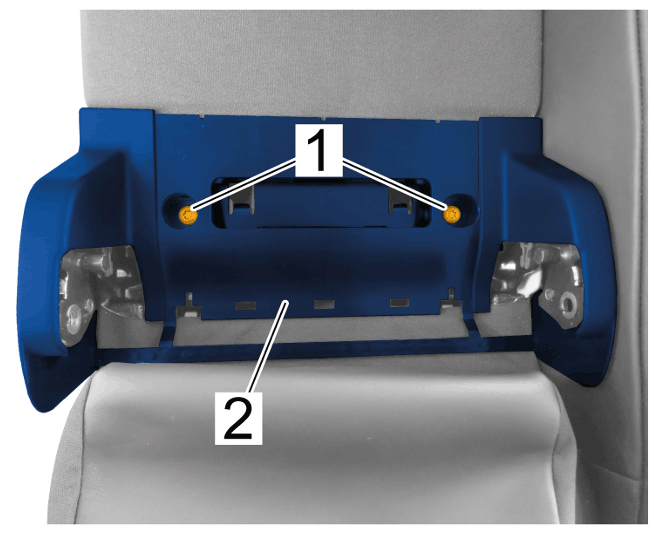

Screw securing armrest holder to load-through provision Item 1 Tightening torque 9 Nm (6.5 ftlb.)
G15240142Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Armrest holder

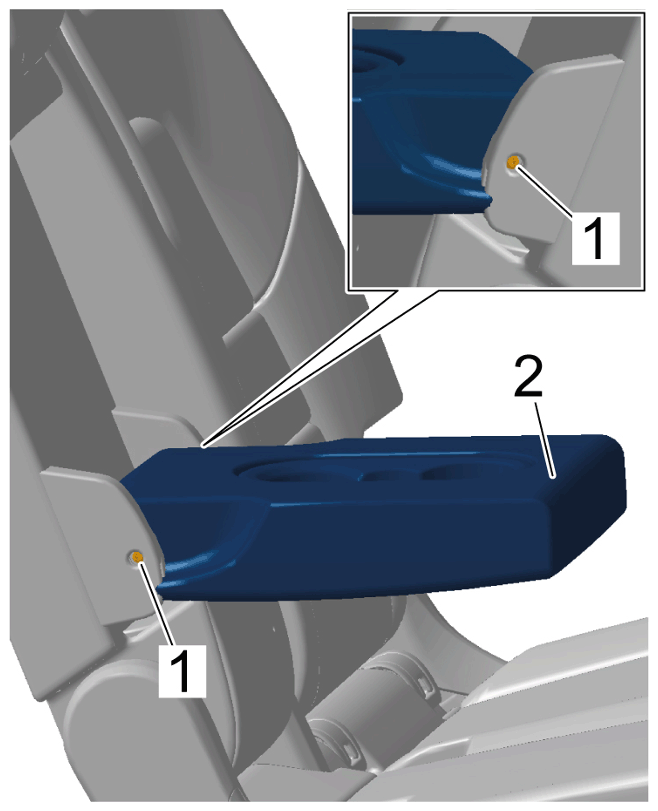

Screw securing armrest with cover to load-through provision Item 1 Tightening torque 7 Nm (5 ftlb.)
G15240143Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for armrest

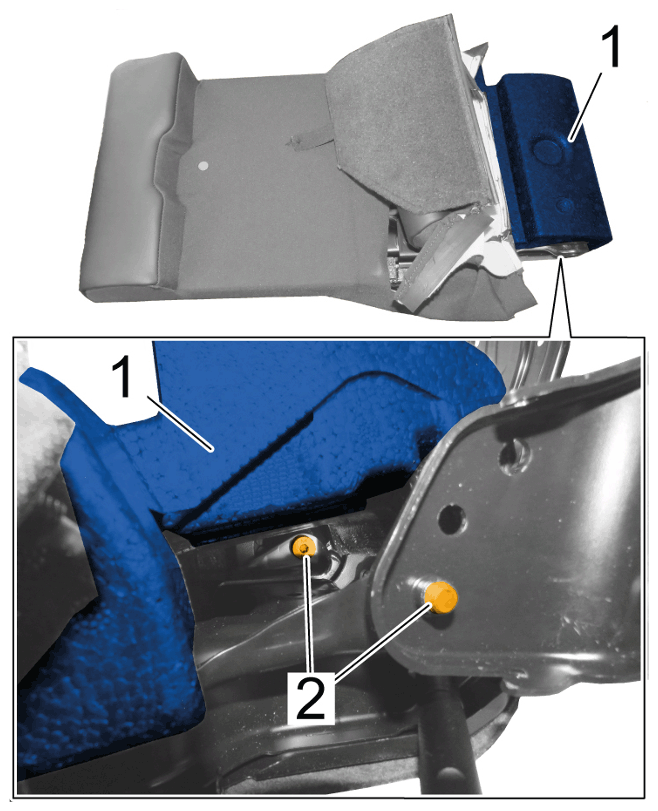

Screw securing load-through provision to holder Item 2 Tightening torque 25 Nm (19 ftlb.)
G15240144Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Load-through provision

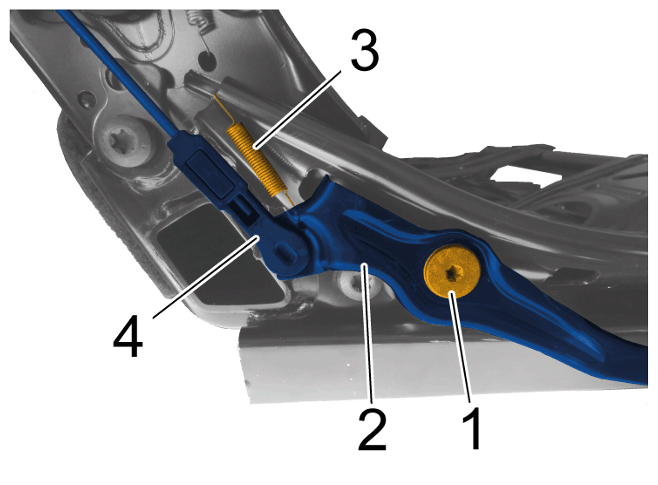

Screw securing release lever to seat frame Item 1 Tightening torque 25 Nm (19 ftlb.)
G15240145Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release lever

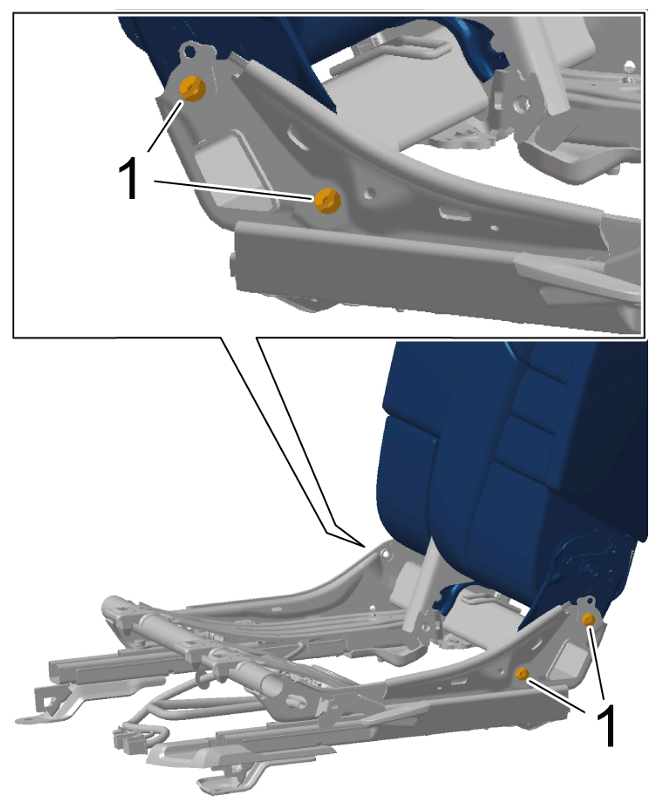

Screw securing backrest to seat frame Item 1 Tightening torque 58 Nm (43 ftlb.)
G15240146Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for backrest

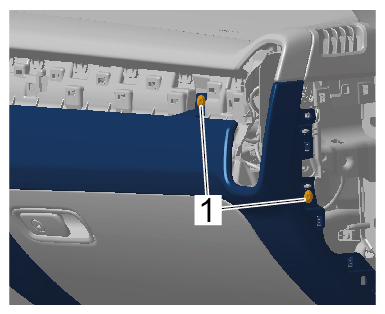

Screw for trim panel for dashboard (passenger's side) Item 1 Tightening torque 3 Nm (2 ftlb.)
G15240147Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim panel for dashboard (passenger's side)

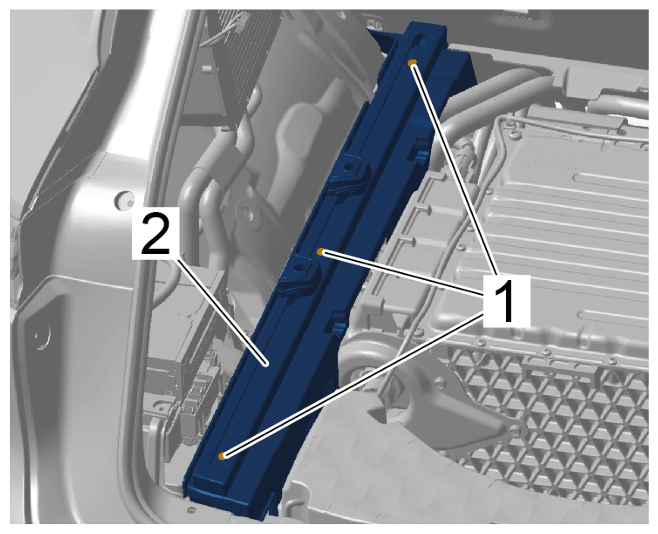

Screw securing luggage rail to body Item 1 Tightening torque 12 Nm (9 ftlb.)
G15240148Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Luggage rail
Screw securing luggage rail to body Item 1 Tightening torque 12 Nm (9 ftlb.)

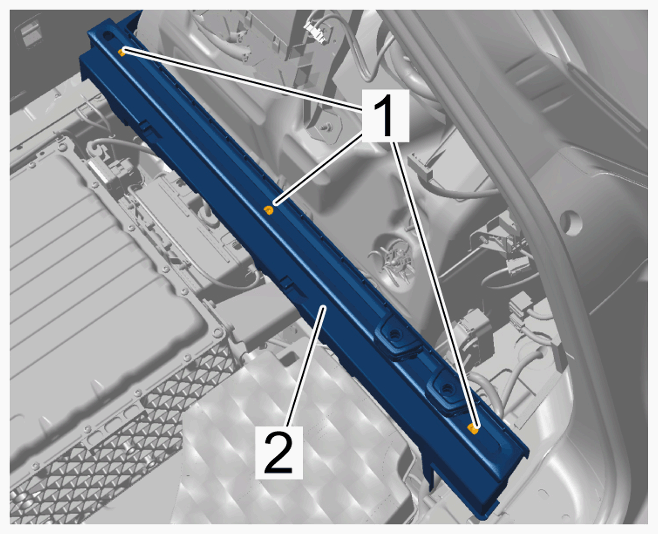

G15240149Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Luggage rail

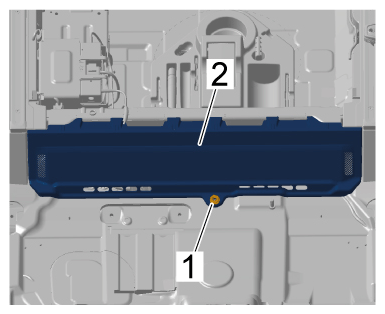

Nut securing front floor cover to body Item 1 Tightening torque 2 Nm (1.5 ftlb.)
G15240150Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front floor cover
Dashboard Item 1 Tightening torque 3 Nm (2 ftlb.)

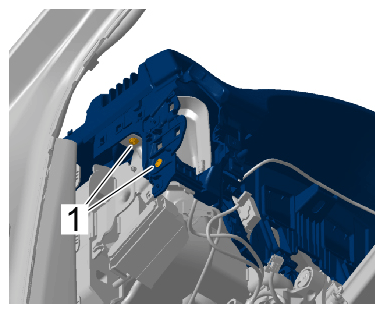

G15240151Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side screws, left
G15240152Courtesy of PORSCHE CARS NORTH AMERICA, INC.

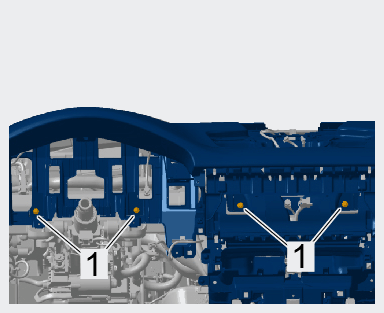

Screws on driver's side

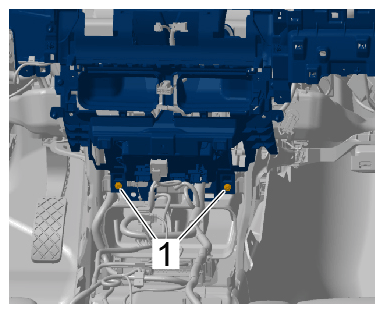

G15240153Courtesy of PORSCHE CARS NORTH AMERICA, INC.

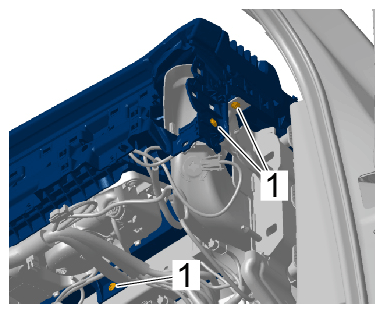

Centre screws
G15240154Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on passenger's side
