Front Door Panel

Location	Description	Type	Basic value
Screws for armrest	Item 1	Tightening torque	2.3 Nm (1.6 ftlb.)
Screws for armrest	Item 2	Tightening torque	2.8 Nm (2.1 ftlb.)

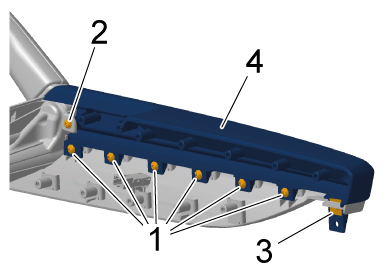

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Armrest
Screws for armrest trim	Item 2	Tightening torque	2.3 Nm (1.6 ftlb.)

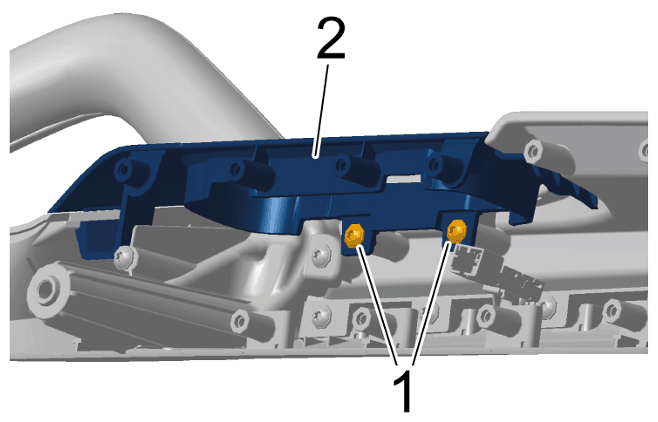

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for armrest trim
Screws for armrest	Item 1	Tightening torque	2.3 Nm (1.6 ftlb.)
Screws for armrest	Item 2	Tightening torque	2.8 Nm (2.1 ftlb.)

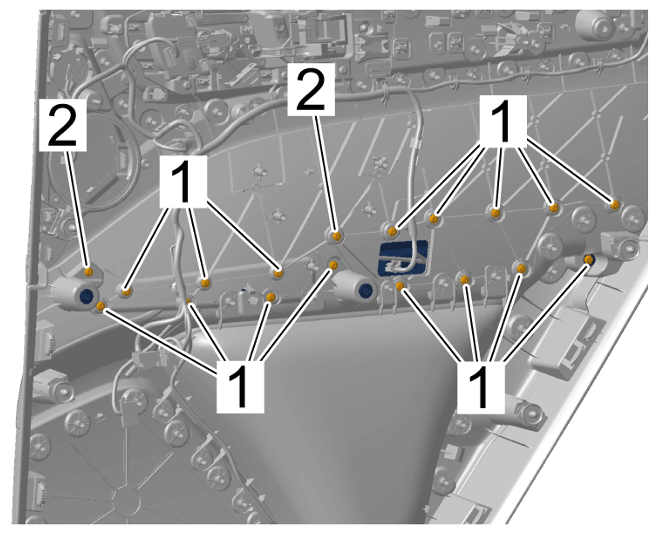

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Screws for door panel	Item 1	Tightening torque	4.5 Nm (3.25 ftlb.)

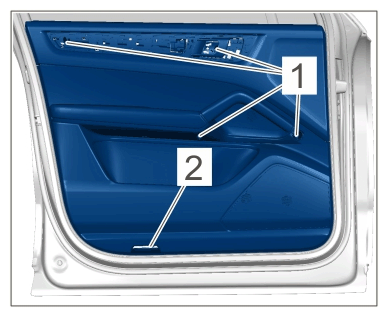

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on door panel
Screw on door panel	Item 2	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on door panel
