Rear Door Panel

Location	Description	Type	Basic value

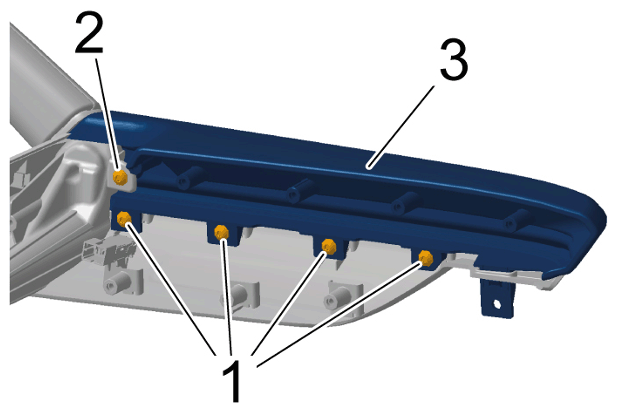

Screws for armrest	Item 1	Tightening torque	2.3 Nm (1.7 ftlb.)
Screws for armrest	Item 2	Tightening torque	2.8 Nm (2.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for armrest

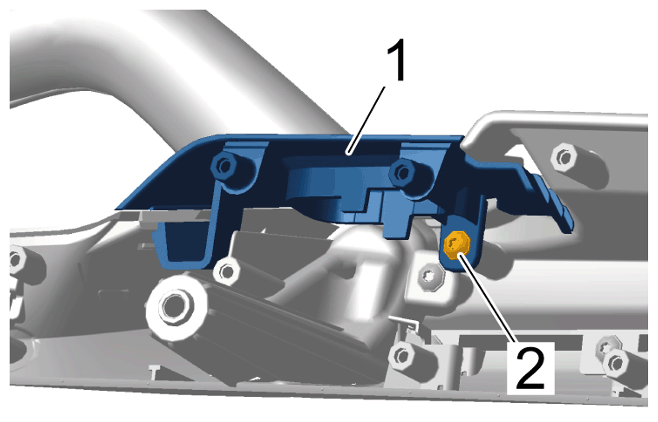

Screw for armrest trim		Tightening torque	2.3 Nm (1.7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for armrest
Screws for armrest	Item 1	Tightening torque	2.3 Nm (1.7 ftlb.)
Screws for armrest	Item 2	Tightening torque	2.8 Nm (2.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

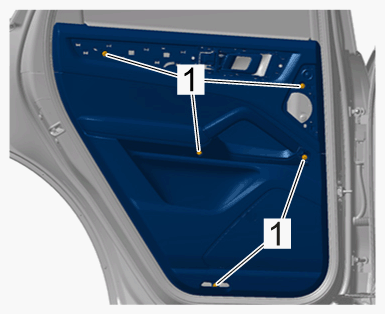

Screws for door panel	Item 1	Tightening torque	4.5 Nm (3.3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
