| Dashboard |
Item 1 |
Tightening torque |
3 Nm (2 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

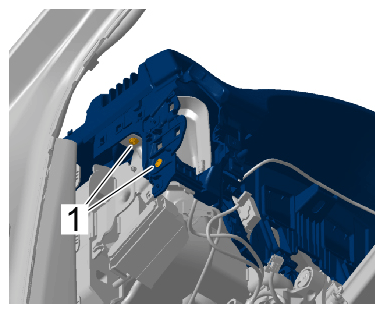

Side screws, left |
|
|
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

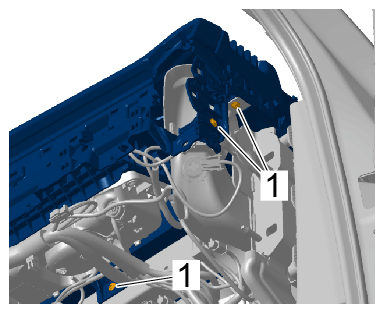

Screws on driver's side |
|
|
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

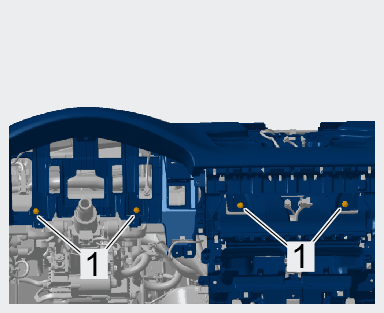

Centre screws |
|
|
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

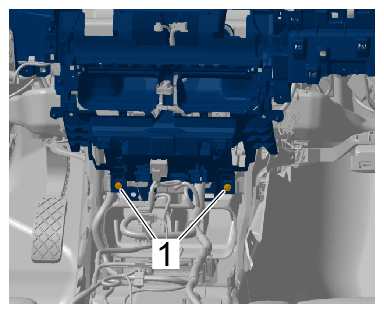

Screws on passenger's side |
|
|
|
|
