7X Body-Equipment Inside General (Wagon) -- 9YA - Cayenne (9YA)
>>
WM, 7X00IN Technical Values
>>
Dashboard Cover (On Driver's Side)
Dashboard Cover (On Driver's Side)
Location
Description
Type
Basic value
Tolerance
Screw securing dashboard cover (driver's side) to instrument panel
Item 1
Tightening torque
3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

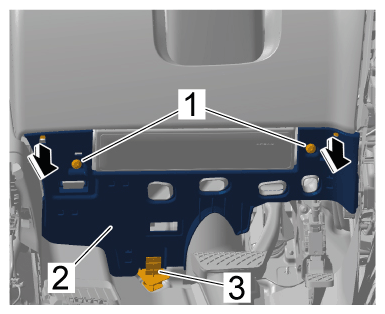

Dashboard cover (on driver's side)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
