7X Body-Equipment Inside General (Wagon) -- 9YA - Cayenne (9YA)
>>
WM, 7X00IN Technical Values
>>
A-Pillar Trim Panel
A-Pillar Trim Panel
Location
Description
Type
Basic value
Tolerance

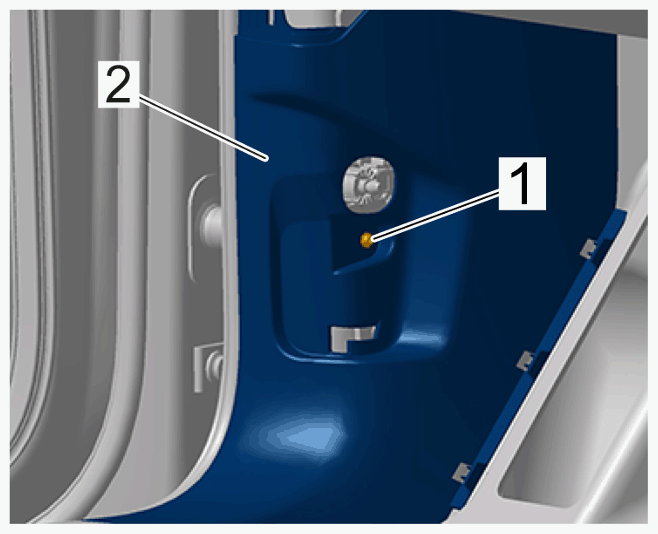

Screw for A-pillar trim panel (lower part)
Item 1
Tightening torque
2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
A-pillar trim panel (lower part)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
