Centre Console

Location	Description	Type	Basic value

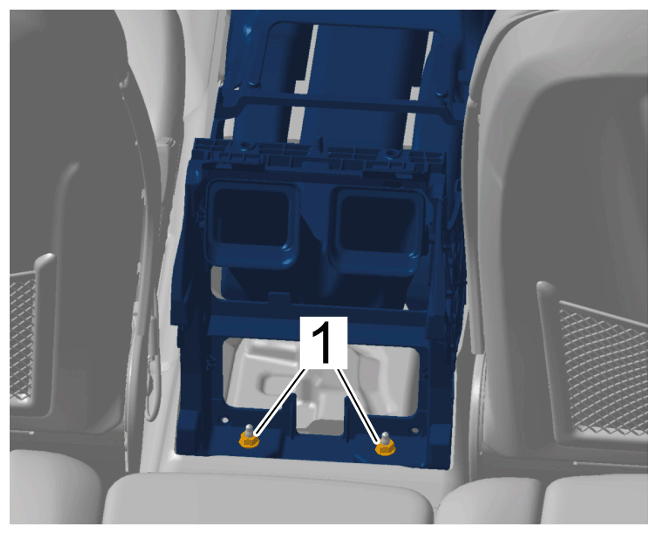

Nuts securing rear center console to bracket	Item 1	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts

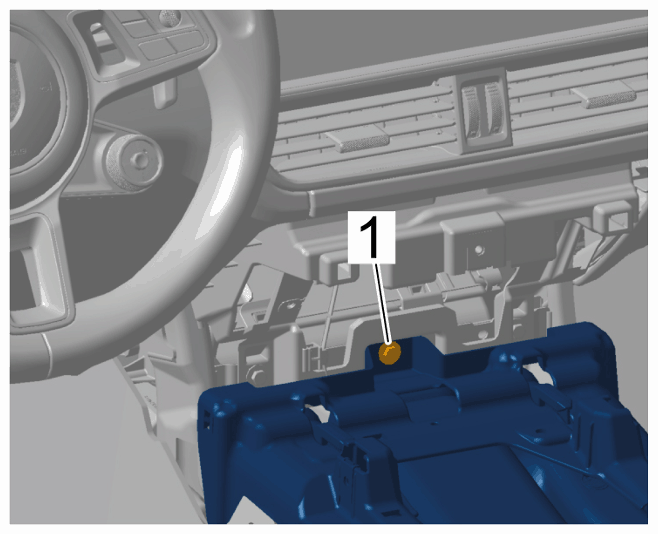

Screw securing front center console to instrument panel	Item 1	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw

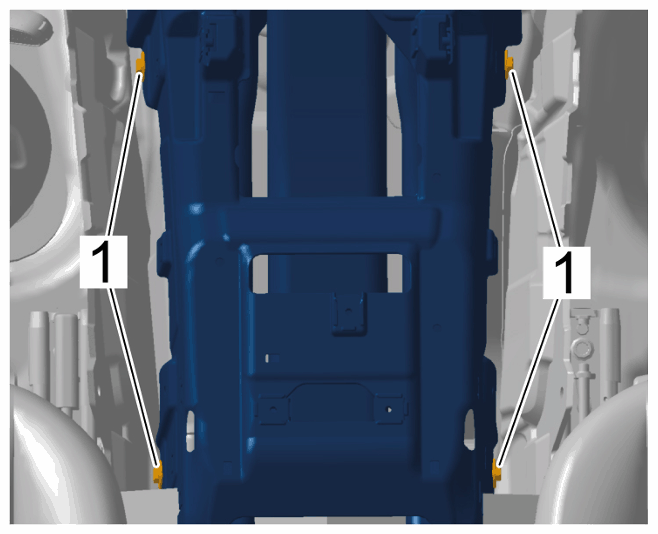

Screws securing center console to bracket	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

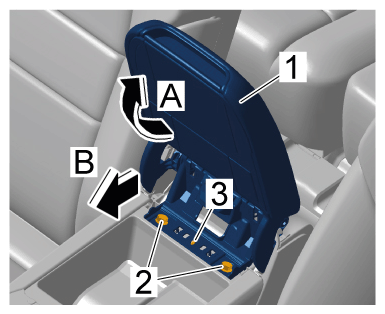

Screws for center armrest cover	Item 2	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for cover on tray

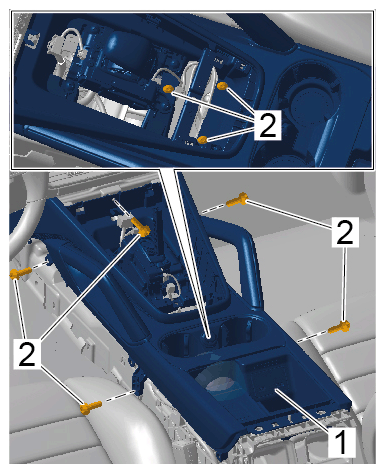

Screws securing upper part of center console to center console	Item 2	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for upper part of center console

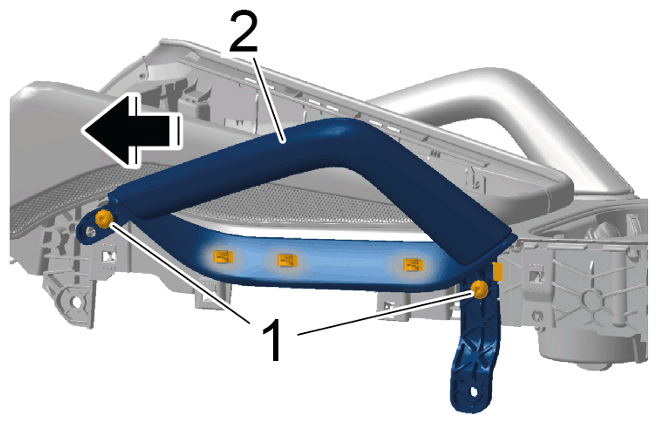

Screws securing grab handle to upper part of center console	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Grab handles

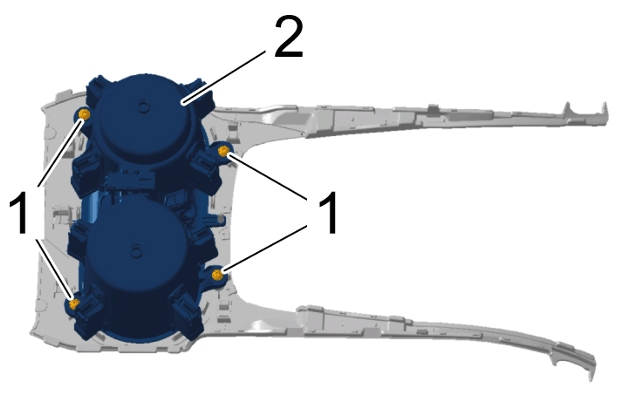

Screws for cupholder	Item 1	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

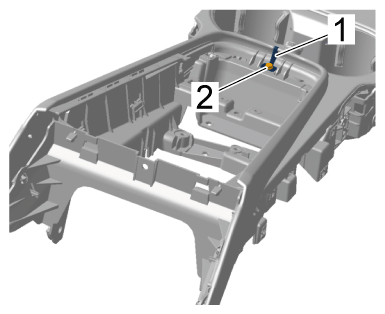

Screw securing trim element to center console	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Trim element

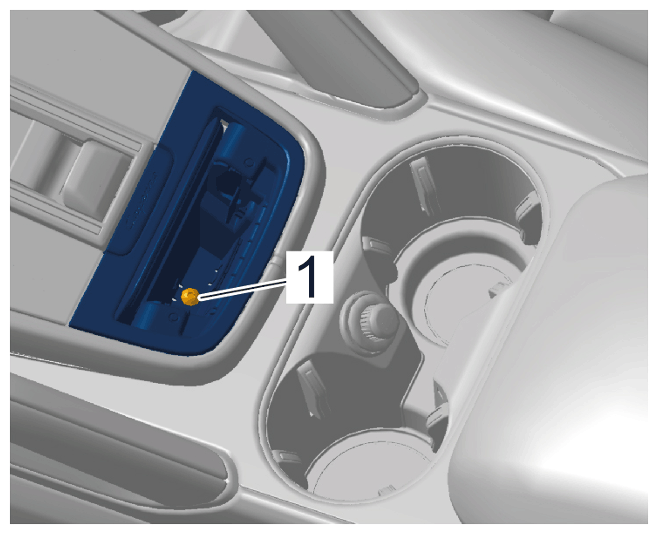

Screw securing ashtray to upper part of center console	Item 1	Tightening torque	2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw
