Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Brake master cylinder to electric brake booster (PHEV only) | Internal hexagon roundhead bolt, M8 | Tightening torque | 22 Nm (16 ftlb.) | ||
| Brake line to brake master cylinder | Union nut | Tightening torque | 16 Nm (12 ftlb.) |

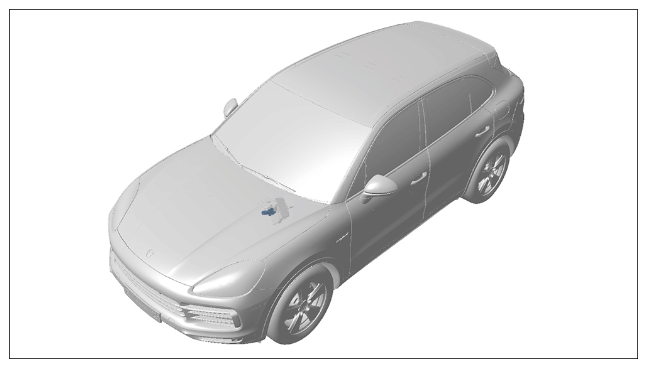

Installation position
Installation position
