Removing Brake Fluid Reservoir
Information
When carrying out work during which fluids can escape, leave electric plug connections to be disconnected locked and connected for as long as possible. This prevents fluid from getting onto electric contacts and causing corrosion.
Information
Brake fluid - even thinned brake fluid - causes corrosion on electric contacts, thereby impairing functions.
Have suitable stoppers ready for closing off the connection openings.
Place suitable material underneath to collect emerging brake fluid, e.g. clean, absorbent cloths.
Disconnect brake fluid reservoir connections.

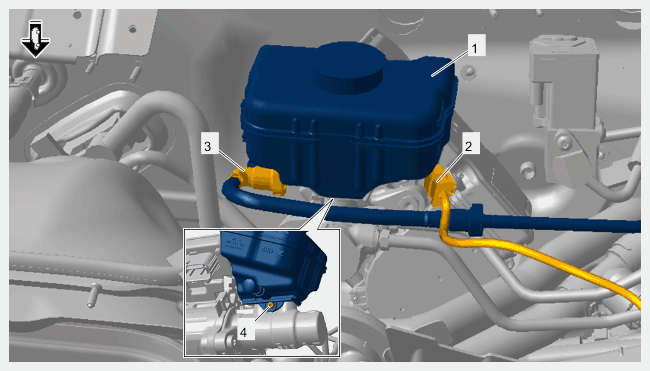

Brake fluid reservoir
Release and disconnect electric plug connection for brake fluid reservoir -2- .
Protect electric plug connection for brake fluid reservoir -2- from brake fluid and soiling using suitable aids.
Release and disconnect connection -3- .
Close off connections with stoppers.
Remove brake fluid reservoir -1- .
Brake fluid reservoir
Loosen and unscrew screw on brake fluid reservoir -4- .
Pull brake fluid reservoir -1- up off the brake master cylinder.
Close off connections with stoppers.
Remove any emerging brake fluid immediately using suitable aids; clean affected components with water and dry them.
