Removing ATF Pan

WARNING: This page is about a different variant/trim than selected.
WARNING: Hot fluid
  • Danger of scalding
    1. → Let the fluid cool down.
    2. → Wear personal protective gear.
  1. Remove ATF pan -13-  .

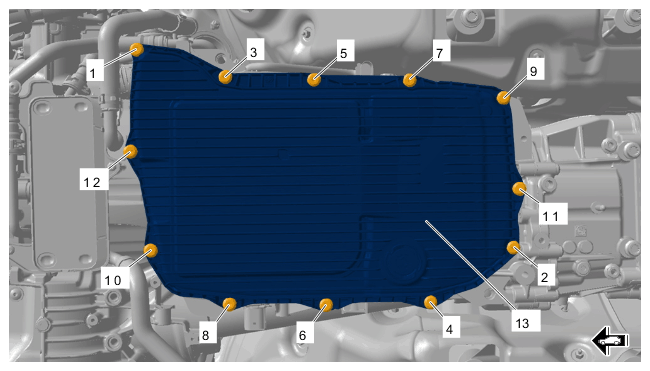

    Fig 1: ATF Pan Screws Loosening Sequence
    G15278284Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    ATF pan

    1. 1.1  Unscrew screws in the loosening sequence -12 to 1-  and remove ATF pan -13-  .
    2. 1.2  Catch any emerging ATF using suitable aids.
