Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

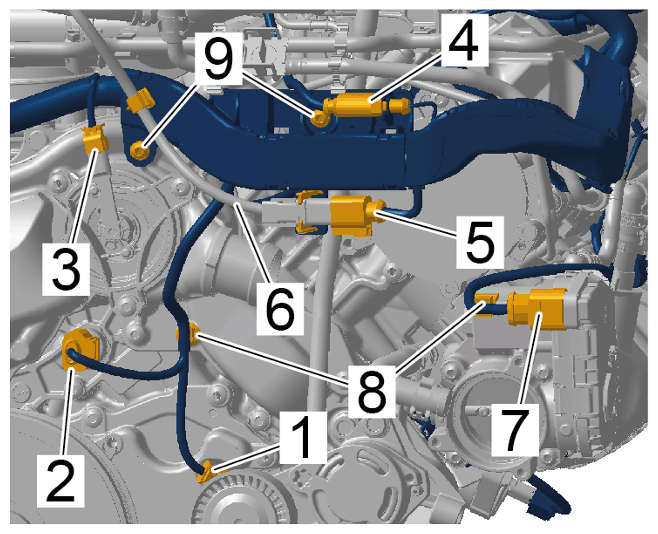

| Fastening screws securing front left cable duct to cylinder head |
Item 9 |
Tightening torque |
9 Nm (6.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening screws on front left cable duct |
| Vacuum pump to cylinder head |
|
Tightening torque |
9 Nm (6.5 ftlb.) |
|
|
