Removing Brake Booster Vacuum Pump

WARNING: This page is about a different variant/trim than selected.

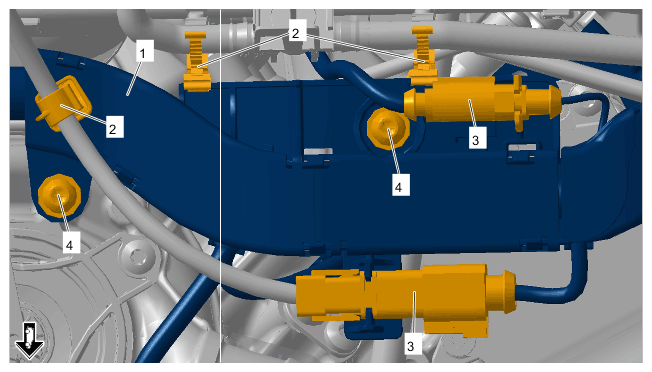

Disconnect electric wire harness -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness
1. 1.1 Unclip line clips -2- .
2. 1.2 Release and disconnect electric plug connections -3- .
3. 1.3 Unscrew and remove screws -4- .
4. 1.4 Set electric wire harness -1- aside.

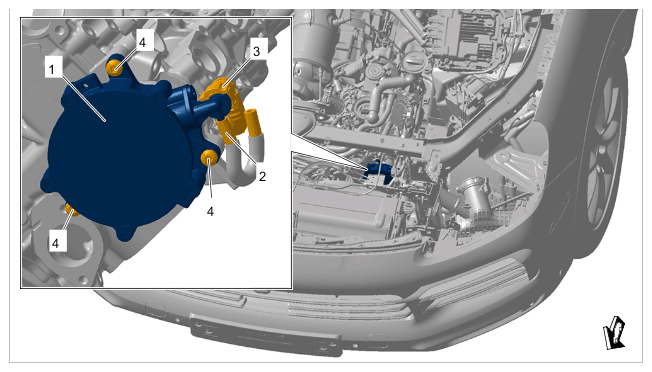

Remove brake booster vacuum pump -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake booster vacuum pump
1. 2.1 Disconnect vacuum hose -2- from brake booster vacuum pump -1- .
2. 2.2 Release and disconnect hose connection -3- .
3. 2.3 Unscrew and remove screws -4- .
4. 2.4 Remove brake booster vacuum pump -1- .
