Installing Front Brake CALLIPER Warning

Information

• The use of an impact bolter is not permitted.
• The thread must be checked visually and may have to be blown out carefully using compressed air. Always wear protective goggles when doing this!
• Replace screws.

Information

Do not bend the brake lines.

• For easier access, turn the steering fully to the left or right!

Information

Collect emerging brake fluid.

1. Visually inspect all components to make sure they are in perfect condition and replace them if necessary.
2. Fit front brake calliper -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

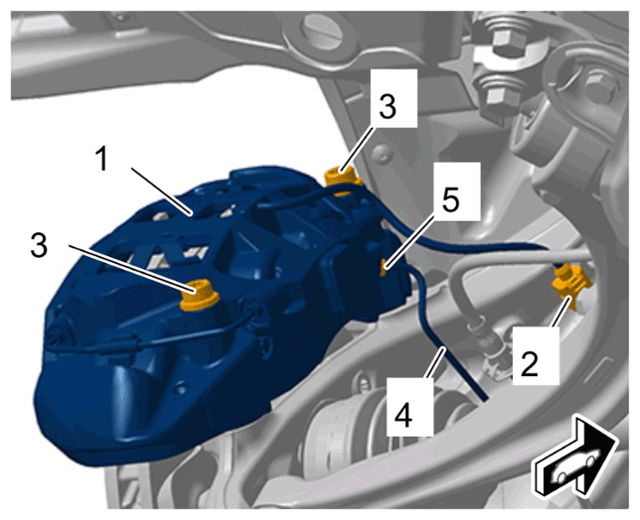

   Front brake calliper

   1. 2.1 Reset brake pads using > 9472 - brake piston resetting fixture  .
   2. 2.2 Position front brake calliper -1-  .
   3. 2.3 Fit brake calliper screws -3-  and tighten to > Initial tightening 30 Nm (22 ftlb.)  and > Final tightening + 90°  .
3. Fit brake line -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front brake calliper

   1. 3.1 Fit brake line -4-  on front brake calliper -1-  .
   2. 3.2 Fit union nut -5-  and tighten to > Tightening torque 14 Nm (10.5 ftlb.)  .
4. Connect and lock electric plug connection for brake pad wear indicator -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front brake calliper

5. Only required if the brake calliper must be installed as part of the subsequent work (brake line remains fitted):  Secure line bracket -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

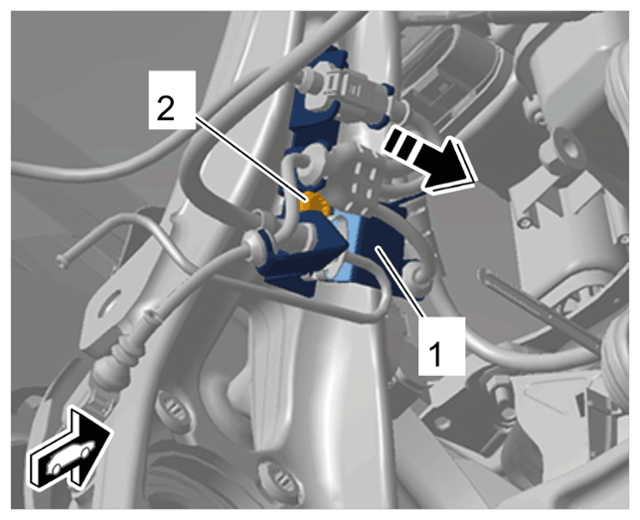

   Line bracket

   1. 5.1 Tighten screw -2-  . > Tightening torque 20 Nm (15 ftlb.)
   2. 5.2 Clip in electric lines on the holder -1-  .
