Changing Brake Fluid Warning

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of injury and damage from brake fluid!

Poisonous if swallowed!
Irritation and damage to skin
Avoid contact with paint surfaces
1. → Store brake fluid in suitable, labelled containers only
2. → Wear protective gloves and goggles
3. → In the event of contact (eyes or skin), wash immediately with water
4. → In the event of contact with paint surfaces, wash off immediately with water - do not wipe off

Information

Observe the brake fluid quality. Only use new DOT4 brake fluid (Hydraulan 404).
Brake fluid can be ordered using the Spare Parts Information (PET).
There are two bleeder valves on the brake calliper. Brake fluid must be drained at both bleeder valves. Observe the sequence: Bleed the outer bleeder valve first.

Information

The pictures shown in this document may differ from the original.

Open the cap on the brake fluid reservoir.
Connect adapter to reservoir. > Bleeding device on reservoir

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

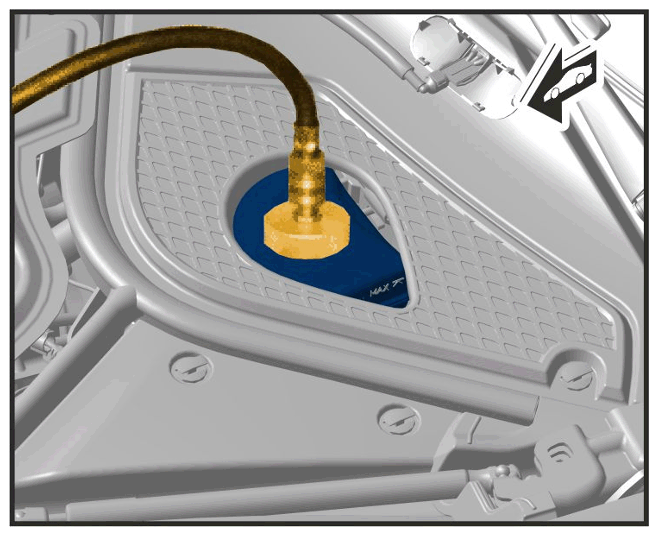

Bleeding device on reservoir
Switch on the bleeding device. Set the bleeding pressure to approx. 2 bar.
Information

Use a transparent hose and a collecting bottle to check the escaping brake fluid for cleanliness, absence of air bubbles and to determine the amount of brake fluid used.
Change the brake fluid.
1. 4.1 Fit collecting bottle hose to the bleeder valve.
2. 4.2 Open bleeder valves on the brake callipers, starting at the rear right brake calliper.
3. 4.3 Open each bleeder valve until clear, bubble-free brake fluid emerges. Then, close the bleeder valve.
4. 4.4 Repeat the procedure on all bleeder valves on the brake callipers one after the other.
Observe the sequence: rear right/rear left/front right/front left.
Tighten bleeder valves to the specified tightening torque and remove bleeder hoses.
Front bleeder valves (grey cast iron/PSCB): > Tightening torque 14 Nm (10.5 ftlb.)

Rear bleeder valves (grey cast iron/PSCB): > Tightening torque 14 Nm (10.5 ftlb.)

Front bleeder valves (PCCB): > Tightening torque 20 Nm (15 ftlb.)

Rear bleeder valves (PCCB): > Tightening torque 14 Nm (10.5 ftlb.)
Switch off the bleeding device and remove the adapter at the reservoir.
Carry out a visual inspection of the brake fluid level and correct the brake fluid level if necessary. The brake fluid level must be between the MIN and MAX markings -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

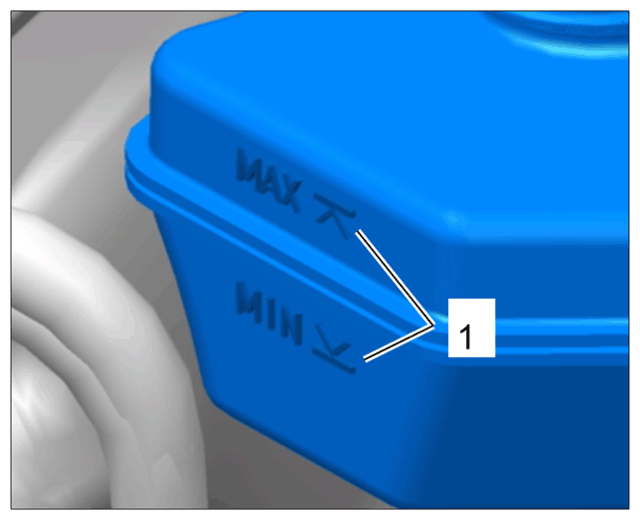

Min/Max markings for brake fluid
Close the cap on the brake fluid reservoir.
