Subsequent Work

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Only for vehicles without Softclose (I-no. GZ2)

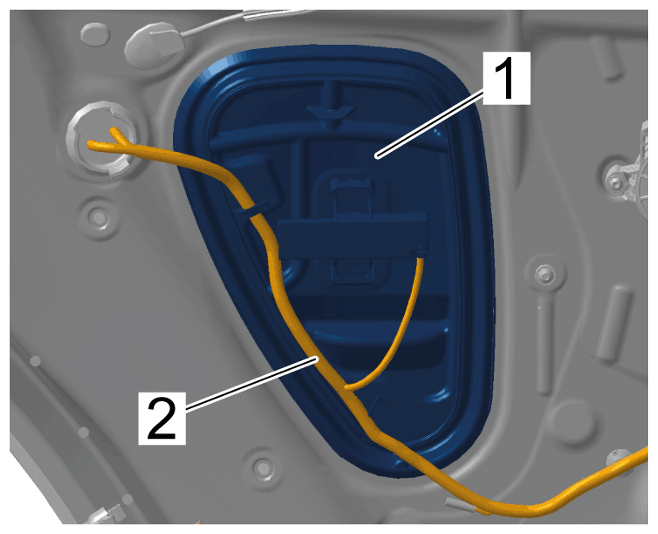

Install new cover -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover
1. 1.1 Clip in new cover -1- .
2. 1.2 Engage electric wire harness -2- .
Only for vehicles with Softclose (I-no. GZ2)
Pull bowden cable -3- with rubber sleeve into the mounting plate.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bowden cable

Only for vehicles with Softclose (I-no. GZ2)

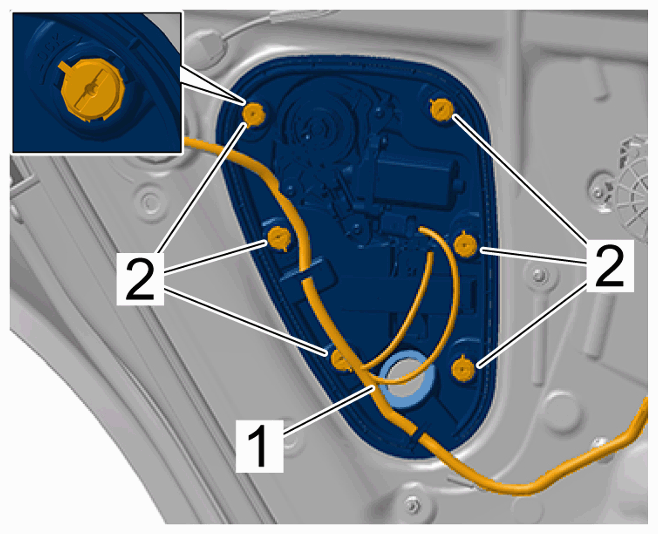

Install bracket for closing aid.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Closing aid bracket
1. 3.1 Fit bracket for closing aid.
2. 3.2 Lock locking mechanisms -2- by turning them clockwise.
3. 3.3 Engage electric wire harness -1- .
Only for vehicles with Softclose (I-no. GZ2)

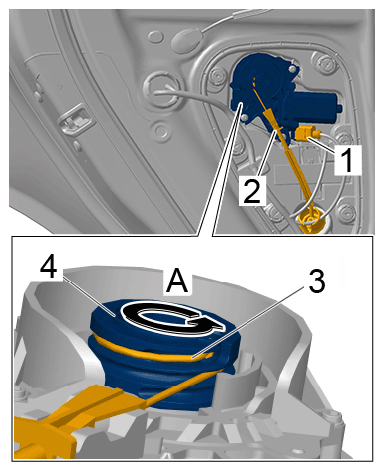

Install closing aid motor.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Closing aid motor
1. 4.1 Connect electric plug connections -1- .
2. 4.2 Engage bowden cable -3- .
  1. 4.2.1 Engage bowden cable -3- in the drive -4- .
  2. 4.2.2 Insert and lock locking lug -2- .

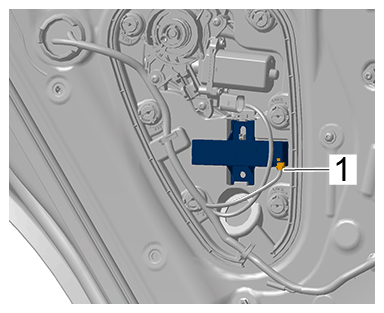

Plug in electric plug connection -1- on KESSY antenna.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Kessy antenna
Install (rear) door window frame.
> 64441903 REMOVE AND INSTALL (REAR) DOOR WINDOW FRAME
Install rear window channel seal
> 646819 REMOVING AND INSTALLING REAR WINDOW CHANNEL SEAL
