Removing (C-Pillar) Cover
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

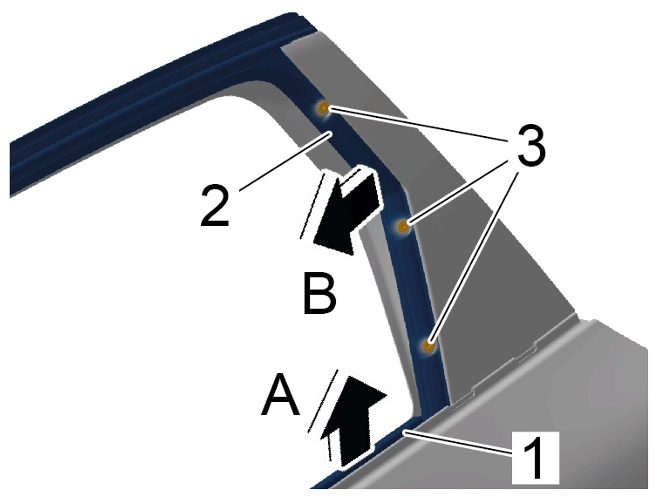

- Pull off rear window guide -1-
in the window shaft area -arrow A-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear window guide
- Pull off rear window guide -2-
in the C-pillar area -arrow B-
until screws -3-
are accessible.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear window guide

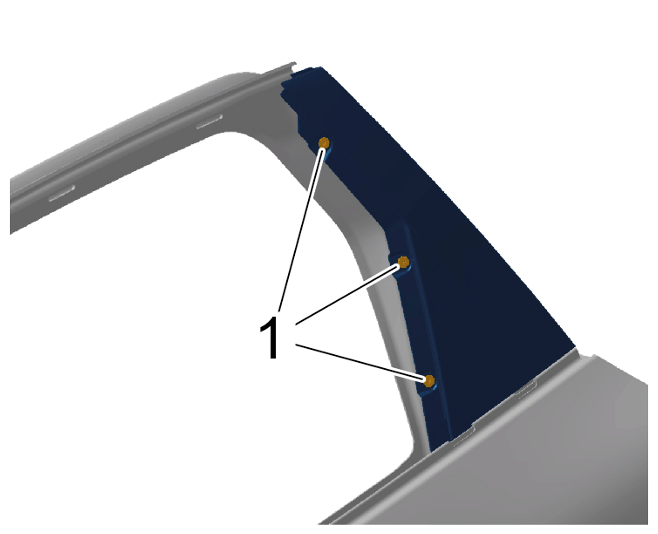

- Unscrew and remove screws -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screws
- Disengage (C-pillar) cover.

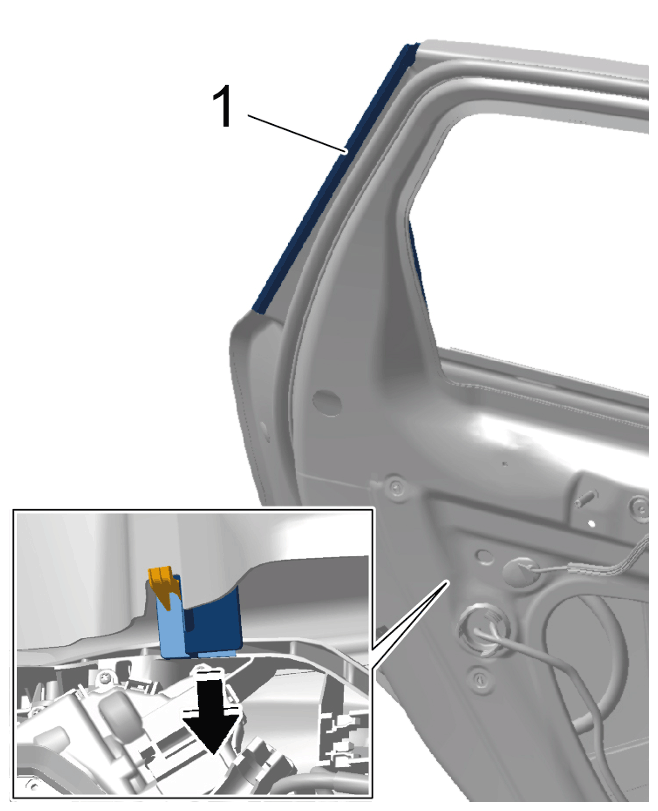

- 4.1 Disengage (C-pillar) cover -1-
from basic door frame at the bottom -arrow-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
(C-pillar) cover

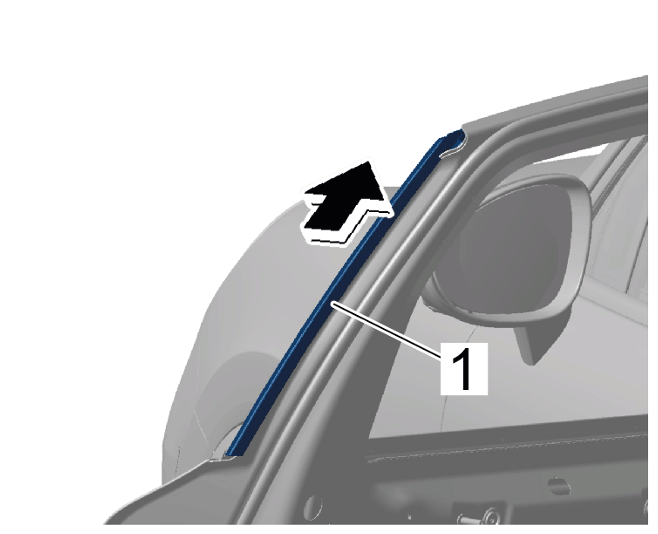

- 4.2 Pull (C-pillar) cover -1-
up -arrow-
out of the door channel.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
(C-pillar) cover
