Preliminary Work

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear window channel seal
> 646819 REMOVING AND INSTALLING REAR WINDOW CHANNEL SEAL
Remove (rear) door window frame.
> 64441903 REMOVE AND INSTALL (REAR) DOOR WINDOW FRAME
Release and disconnect electric plug connection -1- on KESSY antenna.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

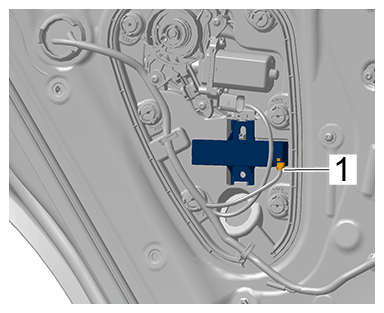

Kessy antenna

Only for vehicles with Softclose (I-no. GZ2)
Release electric plug connection -1- and disconnect it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

Only for vehicles with Softclose (I-no. GZ2)
Disengage bowden cable.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

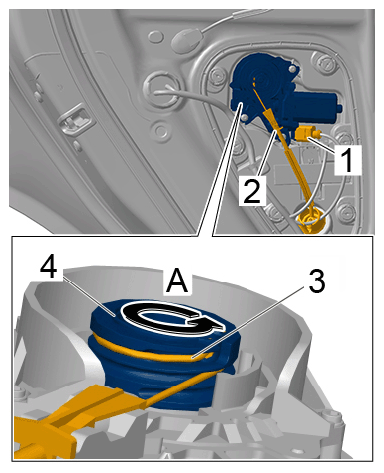

Closing aid motor
1. 5.1 Release locking lug -2- in an upward direction and pull it out.
2. 5.2 Disengage bowden cable -3- from the drive -4-arrow A- .
3. 5.3 Pull bowden cable -3- with rubber sleeve out of the mounting plate.
Only for vehicles with Softclose (I-no. GZ2)
Remove bracket for closing aid.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

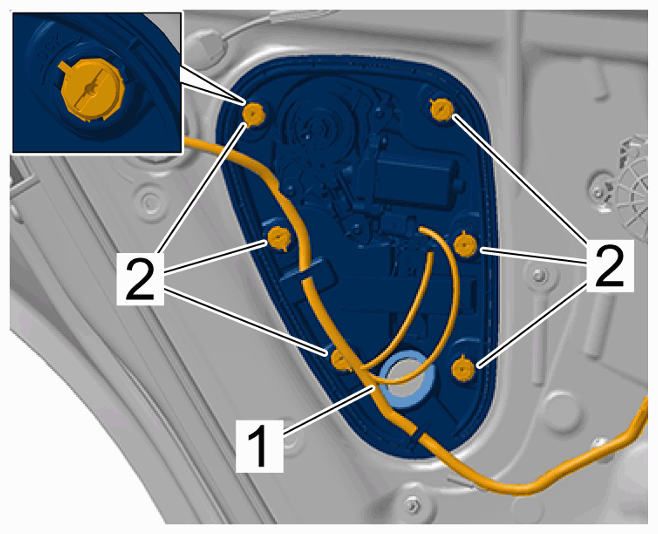

Closing aid bracket
1. 6.1 Disengage electric wire harness -1- .
2. 6.2 Open locking mechanisms -2- by turning them anti-clockwise.
3. 6.3 Take off bracket for closing aid.
Only for vehicles without Softclose (I-no. GZ2)

Information

The cover must be replaced following removal.
Remove cover -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

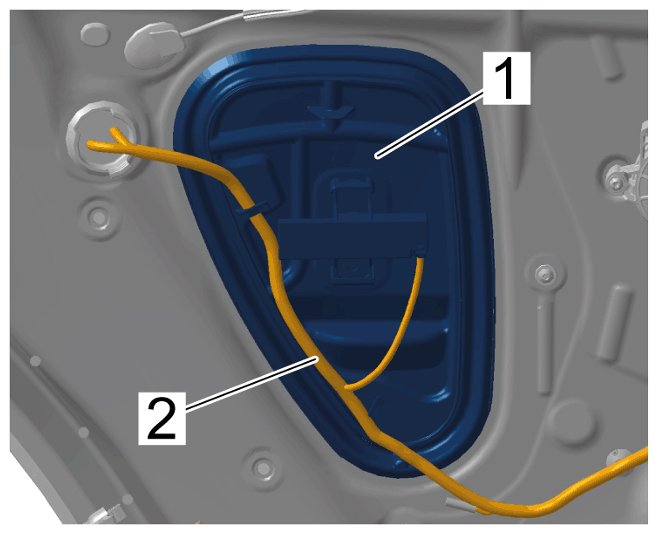

Cover
1. 7.1 Disengage electric wire harness -2- from holders.
2. 7.2 Unclip cover -1- .
