Preliminary Work

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove front window channel seal.
> 644819 REMOVING AND INSTALLING FRONT WINDOW CHANNEL SEAL
Open the front door window fully.
Remove (front) door window frame.
> 644419 REMOVING AND INSTALLING (FRONT) DOOR WINDOW FRAME

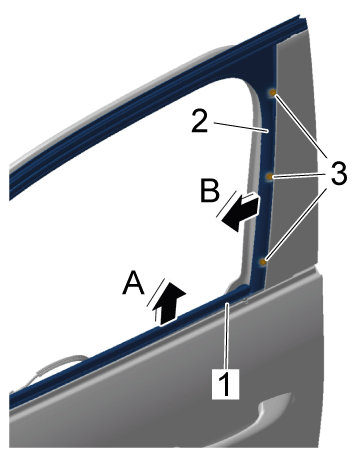

Pull off front window guide -1- inside -arrow A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front window guide
Pull off front window guide -2- to the rear -Arrow B- until screws -3- are accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front window guide
