Removing Rear-View Mirror Housing (Upper Part)
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

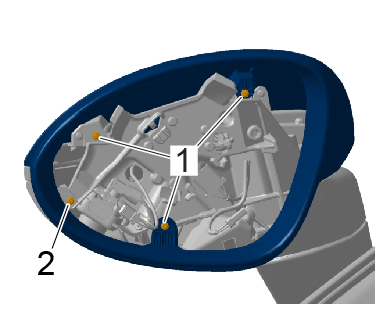

- Unscrew and remove screws -1 and 2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screws

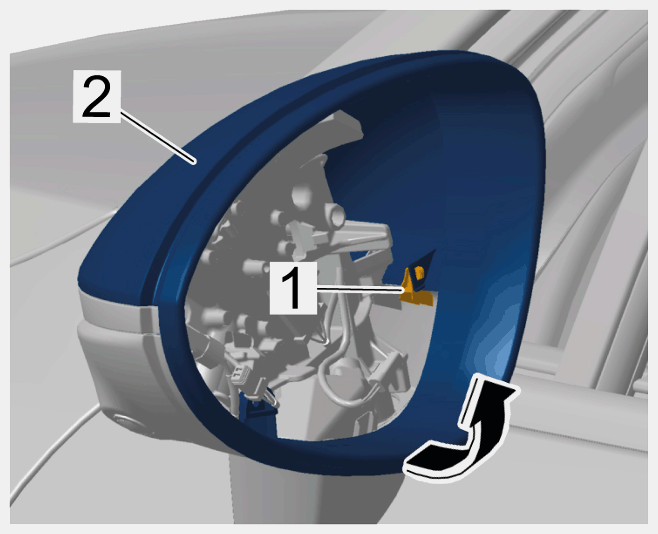

- Remove rear-view mirror housing (upper part) -2-
with side direction indicator by pulling it up -Arrow-
until the electric plug connection is accessible.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Locking lug

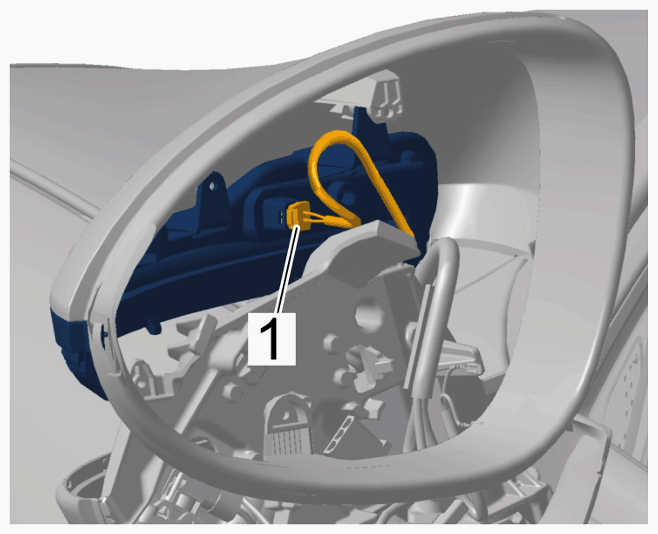

- Release and unplug electric plug connection -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric plug connection
