Removing Rear-View Mirror Housing (Lower Part)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

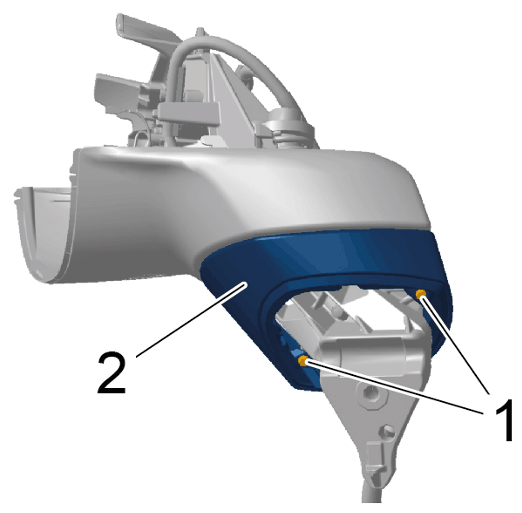

  1. Unscrew screws -1-  on trim panel for mirror base -2-  .
    G15238830Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

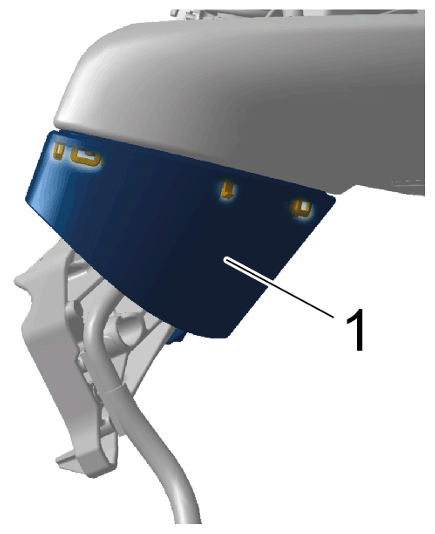

  2. Unclip trim panel for mirror base -1-  and remove it in a downward direction.
    G15238831Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim panel for mirror base

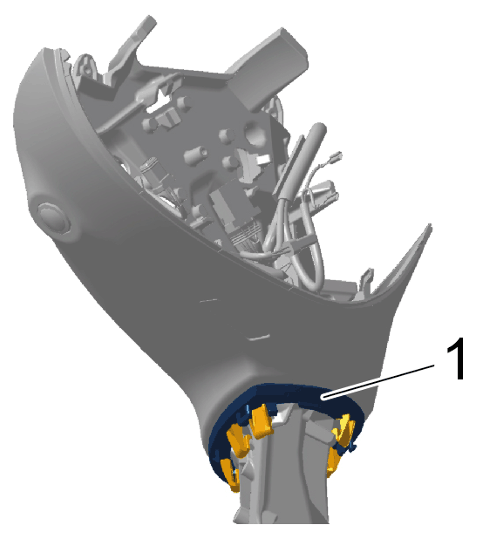

  3. Unclip seal -1-  from mirror base.
    G15238832Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Seal

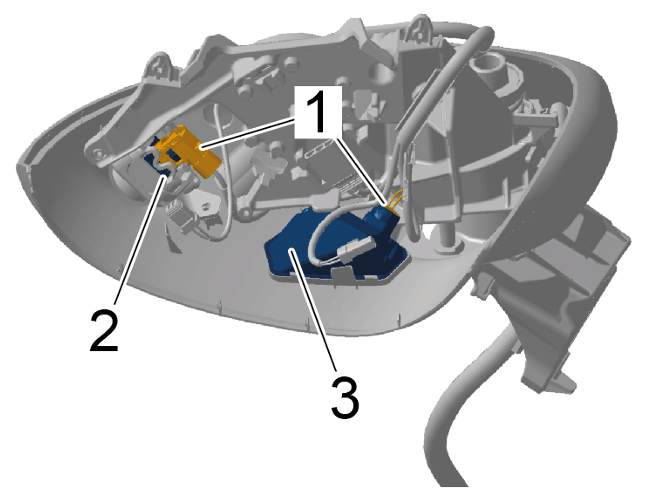

  4. Release and disconnect electric plug connections -1-  on camera -2-  and entry light -3-  .
    G15238833Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

  5. Unscrew and remove screws -1-  .
    G15238834Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  6. Remove rear-view mirror housing (lower part) -2-  by pulling it downwards.
    G15238835Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear-view mirror housing (lower part)
