Removing Mirror Glass
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

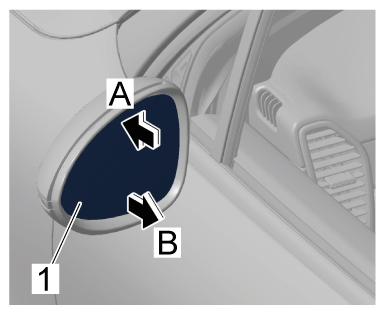

- Press the top of the mirror glass -1-
inwards -arrow A-
and pull it out carefully at the bottom -arrow B-
.
Mirror glass
Information
The number of electric plug connections can vary, depending on equipment.

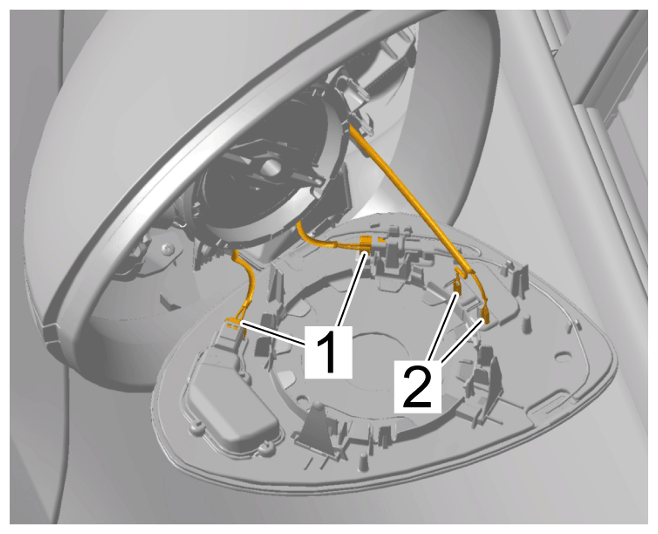

- Release and disconnect electric plug connections -1-
.
Electric plug connections
- Disconnect electric lines -2-
from mirror glass.
Electric lines
- Remove mirror glass.
