Technical Values

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2
Screws securing rear spoiler control unit to rear lid   Tightening torque 3.7 Nm (2.7 ftlb.)

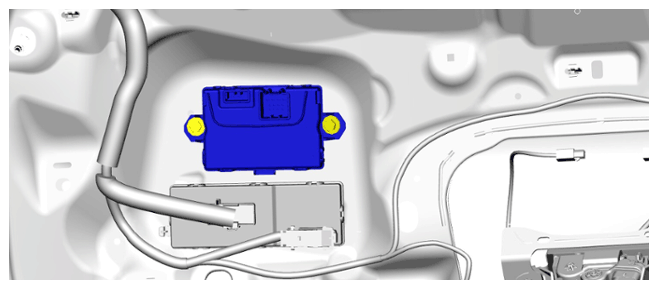

G15238818Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing rear spoiler control unit
