Removing Control Unit For Rear Spoiler
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

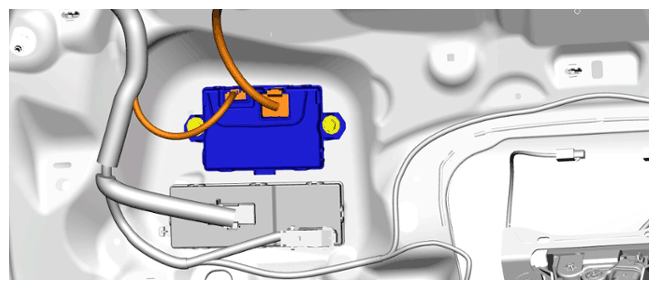

- Release and disconnect electric plug connections on control unit for rear spoiler.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric plug connections

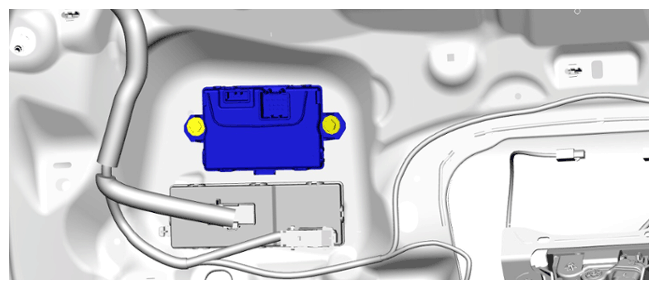

- Unscrew screws used to remove control unit for rear spoiler at the rear lid.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screwing control unit to rear spoiler.
