Removing Rear Spoiler Drive Unit

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove trim panels -1-  .

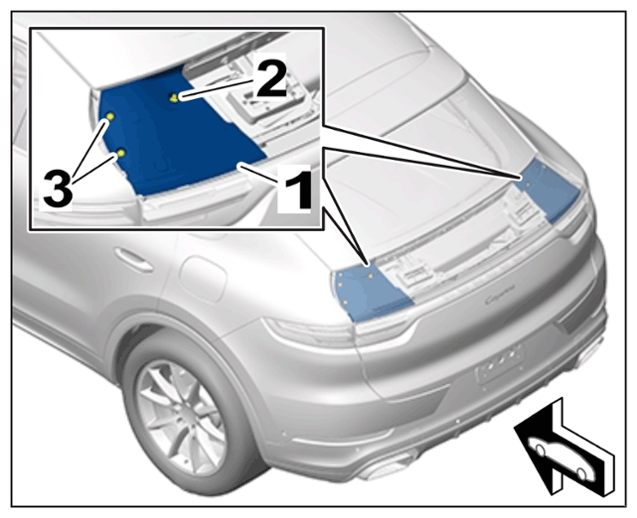

    G15238814Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim panel under rear spoiler at left and right

    1. 1.1 Unclip expansion rivet -2-  .
    2. 1.2 Unscrew screws -3-  .
    3. 1.3 Unclip and remove trim panels -1-  .
  2. Remove centre trim panel -1-  .

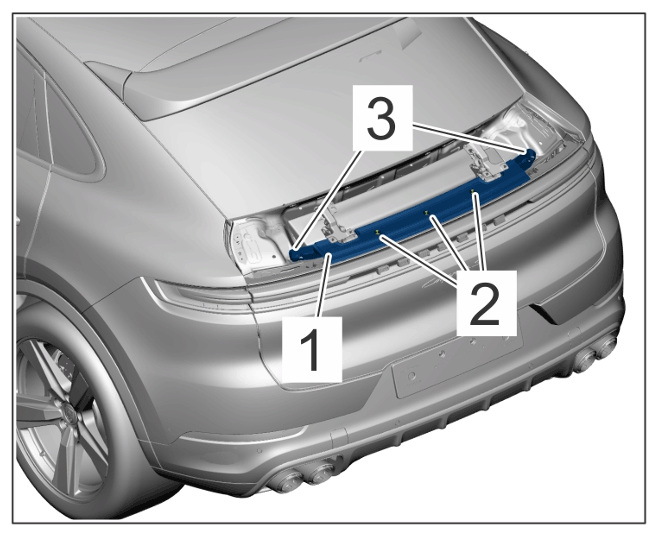

    G15238815Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Centre trim panel

    1. 2.1 Unclip expansion rivets -2-  .
    2. 2.2 Unclip and remove centre trim panel -1-  from latch -3-  .
  3. Disconnect wiring harness for rear spoiler drive unit.

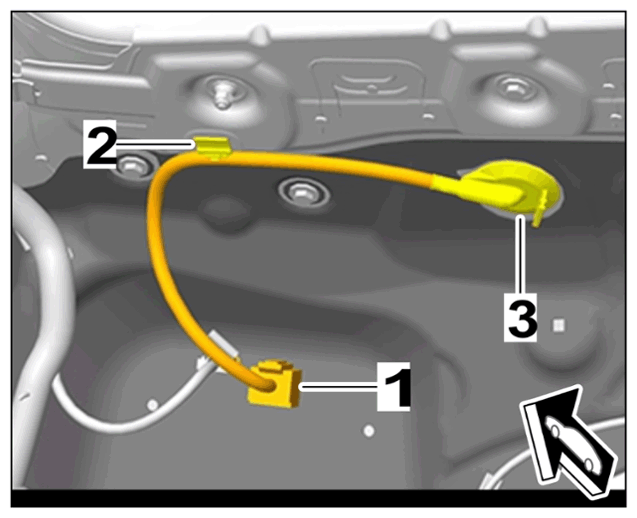

    G15238816Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring harness for rear spoiler drive unit

    1. 3.1 Release and disconnect electric plug connections for rear spoiler drive unit -1-  .
    2. 3.2 Unclip clip -2-  .
    3. 3.3 Press rubber sleeve -3-  through.
  4. Remove rear spoiler drive unit -1-  .

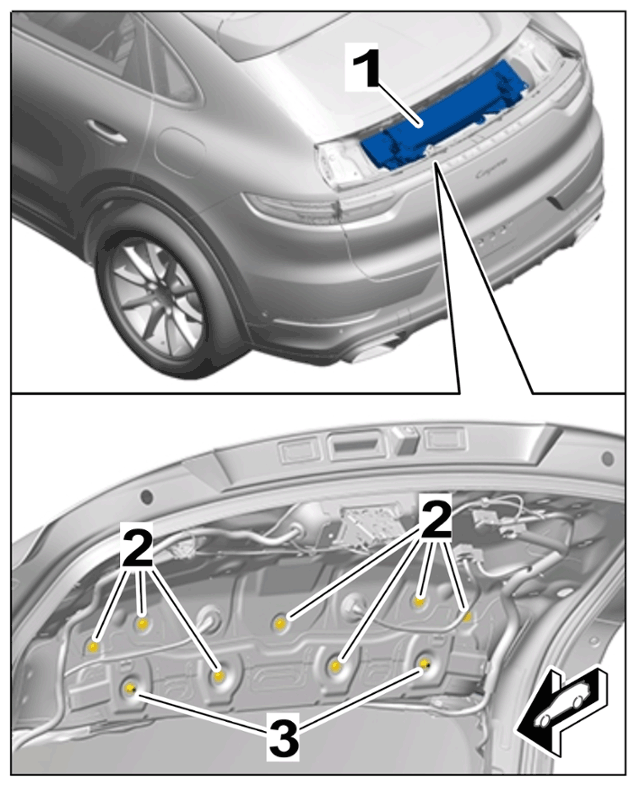

    G15238817Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear spoiler drive unit

    1. 4.1 Unscrew screws -2-  .
    2. 4.2 Unscrew nuts -3-  .
    3. 4.3 Remove rear spoiler drive unit -1-  .
