Installing Moulding For Windscreen

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean clamping strip -1-  .

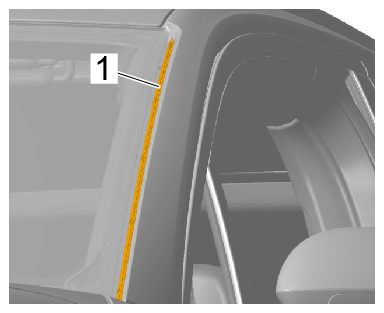

    G15238802Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clamping strip

  2. Fit windscreen moulding -1-  at the top and clip it into the clamping strip from top to bottom -2-  .

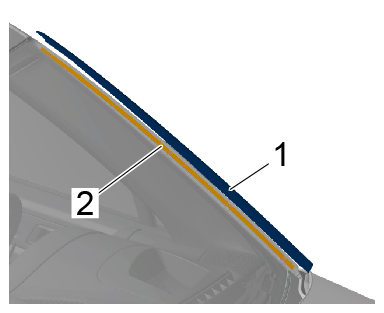

    G15238803Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Windscreen moulding
