Removing Roof Spoiler

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

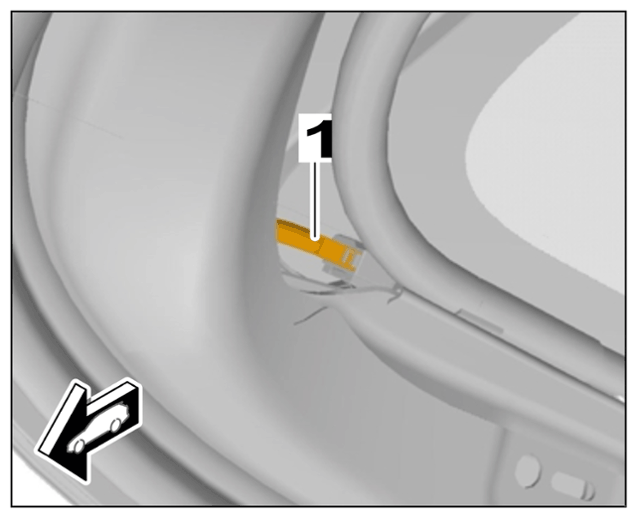

Release and disconnect electric plug connection for AM antenna -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for AM antenna

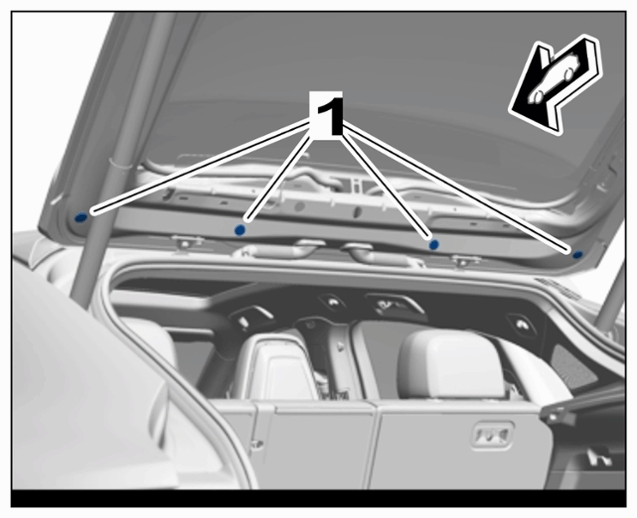

Remove caps -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Caps

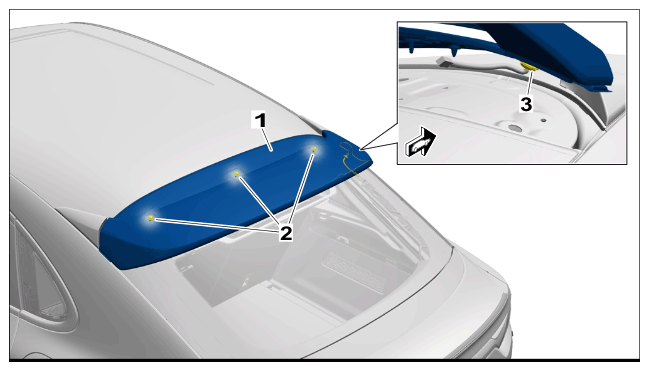

Detach roof spoiler -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roof spoiler
1. 3.1 Unscrew screws -2- .
  1. 3.1.1 Replace screws.
2. 3.2 Unscrew nuts -3- .
  1. 3.2.1 Replace nuts.

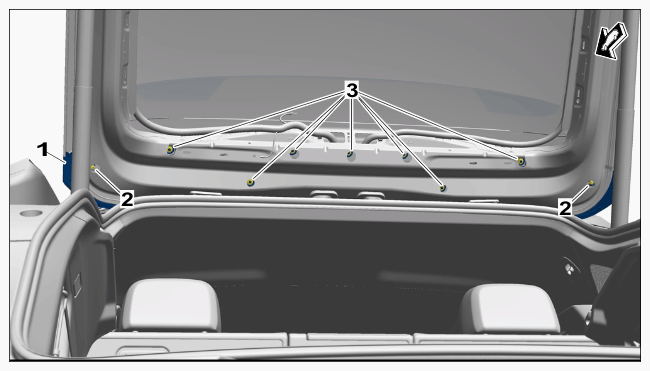

Remove roof spoiler -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roof spoiler
1. 4.1 Close rear lid.
2. 4.2 Unclip roof spoiler -1- at the retaining clips -2- .
3. 4.3 Lift up roof spoiler -1- and press out grommet for AM antenna cable -3- .
4. 4.4 Remove roof spoiler -1- .
Information

If you intend to re-use the roof spoiler, all fastening parts with a foam seal must be replaced.

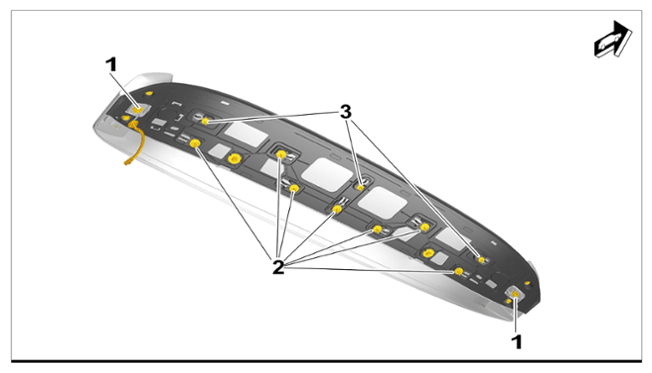

Unclip fastening parts -1 to 3- from roof spoiler centre trim and replace them.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening parts with foam seal
