Installing Roof Spoiler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

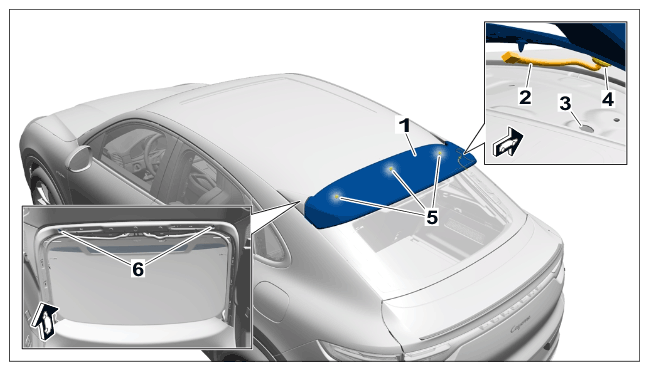

Roof spoiler

1. 1.1 Feed AM antenna cable -2-  through the opening -3-  and press in grommet for AM antenna cable -4-  .
2. 1.2 Position roof spoiler -1-  on the closed tailgate and clip in clips -5-  .
3. 1.3 Align roof spoiler -1-  with the roof and side panel.
4. 1.4 Screw on new  nuts -6-  with the tailgate closed, but do not tighten yet.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

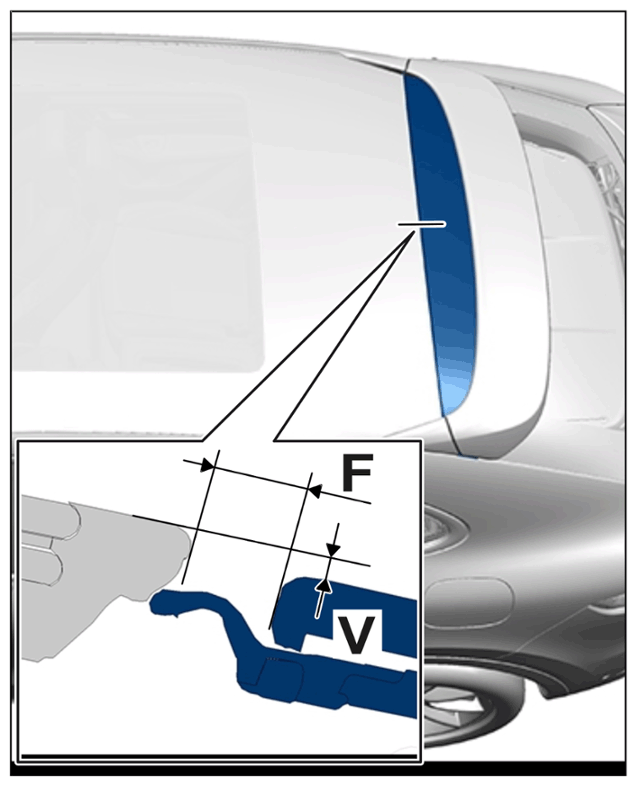

Roof spoiler centre trim to roof

1. 2.1 Align gap between roof spoiler centre trim and roof -F-  .

   > Gap dimension 5.5 mm + 1.5 mm - 0.5 mm

2. 2.2 Align offset between roof spoiler centre trim and roof -V-  .

   > Gap dimension - 1.2 mm + 1.5 mm - 0.5 mm

Information

To set the required gap dimensions, the fins may have to be re-aligned when replacing the roof spoiler.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

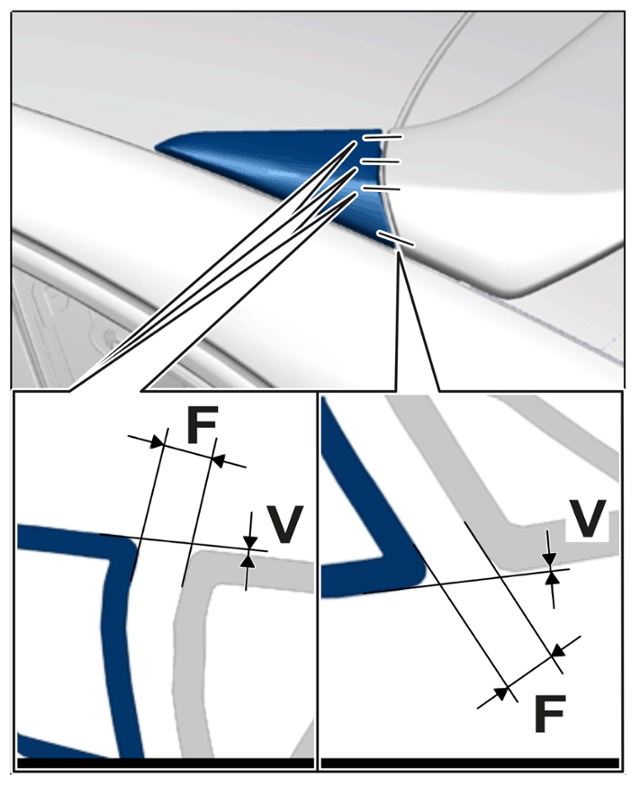

Fin to roof spoiler

1. 3.1 Align gap between roof spoiler and fin -F-  .

   > Gap dimension 4.7 mm + 1.5 mm - 0.5 mm

2. 3.2 Align offset between roof spoiler and fin -V-  .

   > Gap dimension 0.3 mm + 0.5 mm - 0.5 mm

> Tightening torque 6 Nm (4.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roof spoiler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

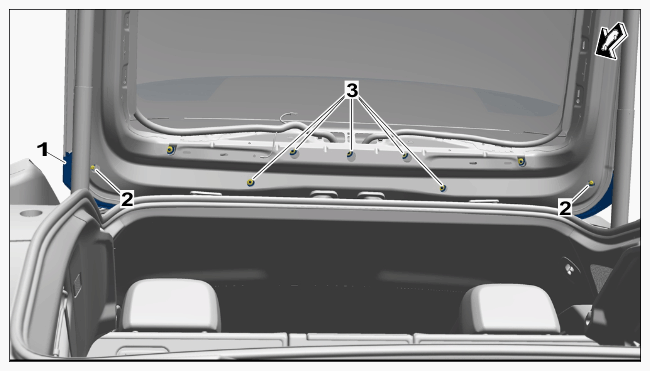

Roof spoiler

1. 5.1 Open rear lid.
2. 5.2 Fit and tighten new  screws -2-  .

   > Tightening torque 2.8 Nm (1.8 ftlb.)

3. 5.3 Screw on and tighten new  nuts -3-  .

   > Tightening torque 6 Nm (4.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

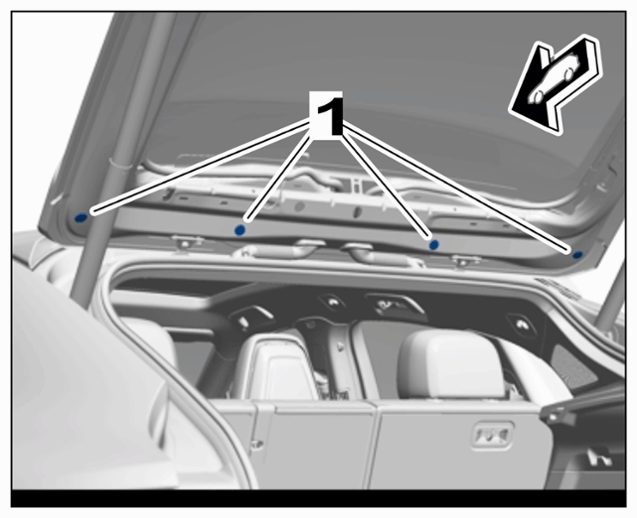

Cap

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

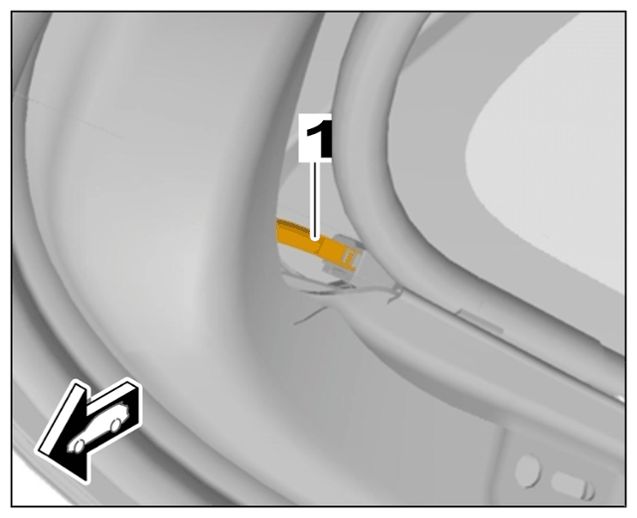

Electric plug connection for AM antenna
