Installing Rear Spoiler

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Retract rear spoiler drive unit.

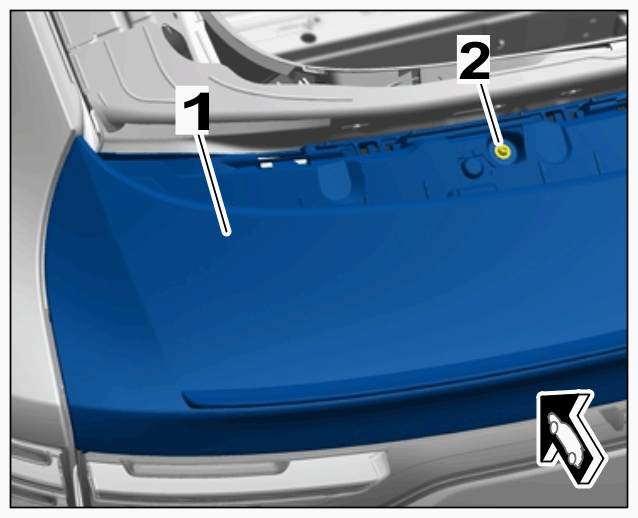

Position rear spoiler -1- on rear spoiler drive unit.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler
1. 2.1 Fit new screws -2- .
2. 2.2 Tighten screws -2- only so much that the rear spoiler can still be adjusted.
Align rear spoiler with side panel - at the sides.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler to side panel

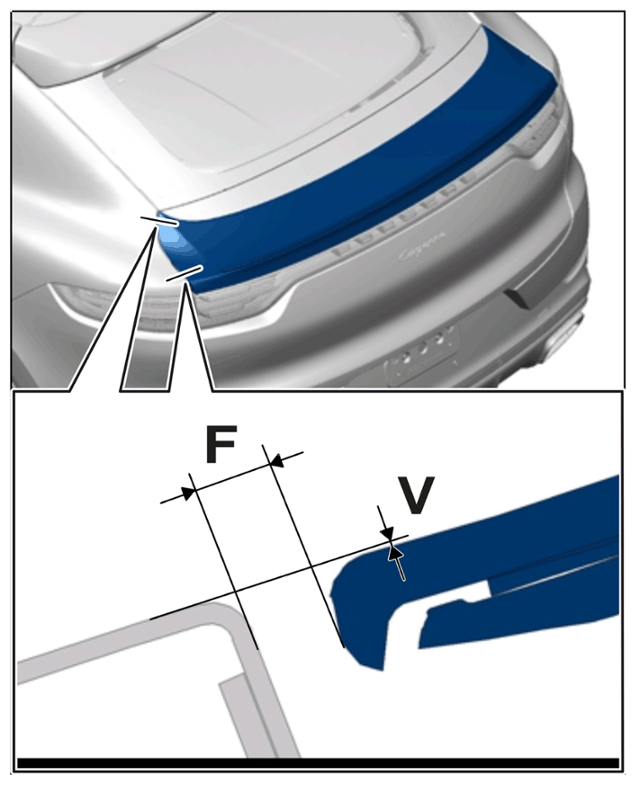

1. 3.1 Align gap between rear spoiler and side panel at the top -F- .
  > Gap dimension 4.5 mm + 1 mm - 1 mm
2. 3.2 Align gap between rear spoiler and side panel at the bottom -F- .
  > Gap dimension 4.5 mm + 0.7 mm - 0.7 mm
3. 3.3 Align offset between rear spoiler and side panel at the top -V- .
  > Gap dimension - 0.5 mm + 0.5 mm - 0.8 mm
4. 3.4 Align offset between rear spoiler and side panel at the bottom -V- .
  > Gap dimension 0 mm + 0.3 mm - 1 mm

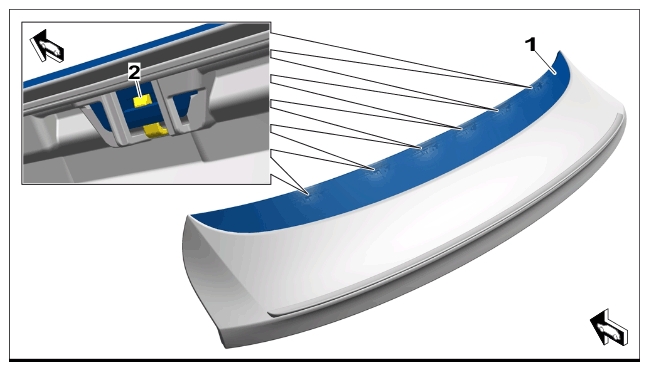

Align rear spoiler with side panel at the rear.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler to side panel

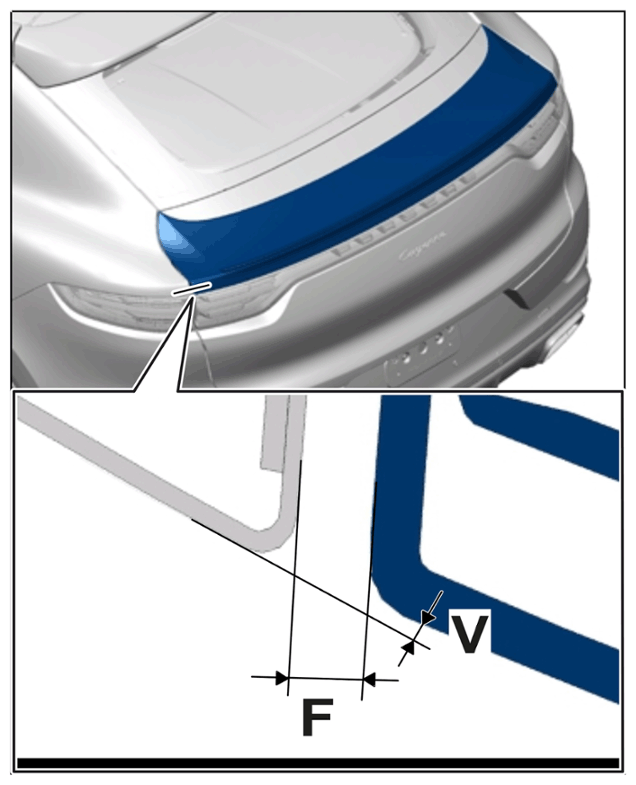

1. 4.1 Align gap between rear spoiler and side panel -F- .
  > Gap dimension 5 mm + 0.7 mm - 0.7 mm
2. 4.2 Align offset between rear spoiler and side panel -V- .
  > Gap dimension - 0.7 mm + 0.7 mm - 0.7 mm
Tighten screws -2- securing rear spoiler -1- . > Tightening torque 4 Nm (3 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler
Extend rear spoiler drive unit -2- .

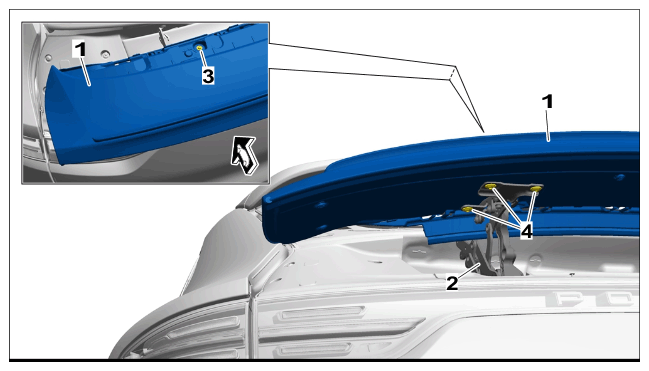

Secure rear spoiler -1- on rear spoiler drive unit -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler
1. 7.1 Fit and tighten new screws -4- .
  > Tightening torque 8 Nm (6 ftlb.)
2. 7.2 Adjust height of rear spoiler protection buffer and ensure it is fitted securely.
Clip cover for window extension -1- into brackets -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on window extension
