Removing Trim Panel For Lid

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

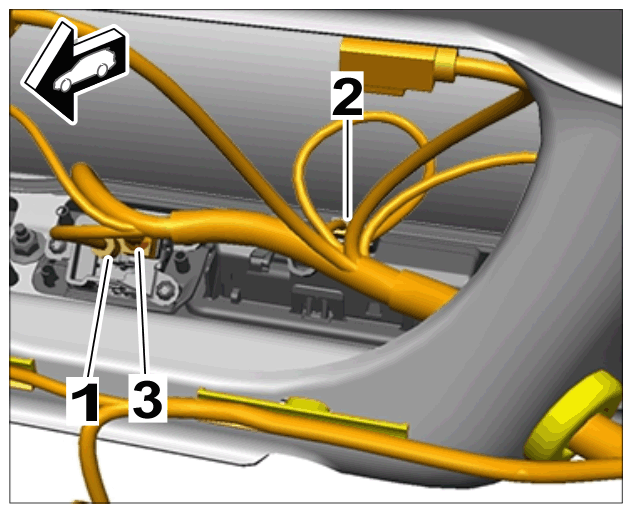

Disconnect electric plug connections.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections on lid trim panel
1. 1.1 Release and disconnect electric plug connection -1- on reversing camera.
2. 1.2 Release and disconnect electric plug connection -2- for lid release.
3. 1.3 Release and pull off hose on spray nozzle -3- for reversing camera.

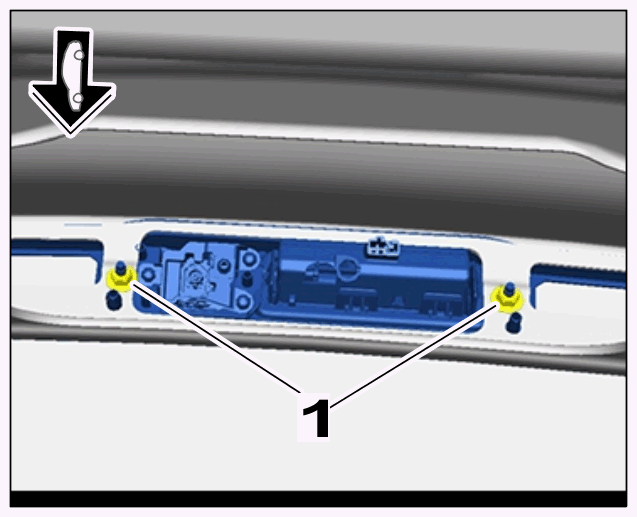

Unscrew nuts -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lid trim panel nuts

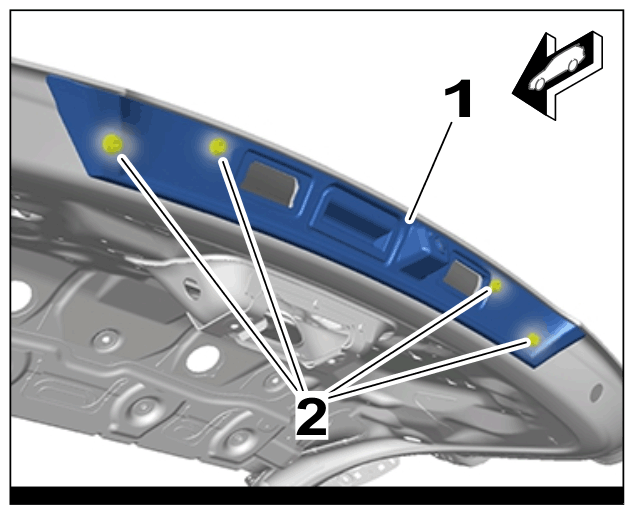

Carefully unclip lid trim panel -1- using plastic wedge, paying attention to fastening parts -2- at the same time.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lid trim panel
