Remove Trim Panel For Cover
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Detach trim panel for cover -4-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

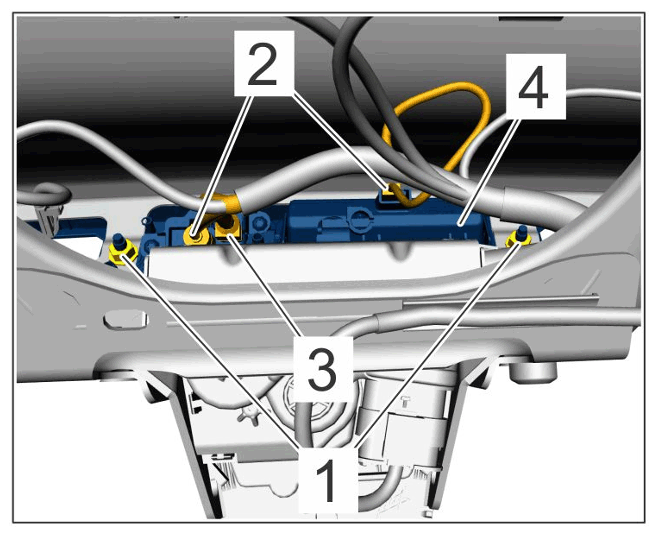

Plug connections
- 1.1 Release electric plug connections -2-
and disconnect them.
- 1.2 Release and pull off spray water hose -3-
.
- 1.3 Unscrew nuts -1-
.
- Remove trim panel -1-
for lid.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

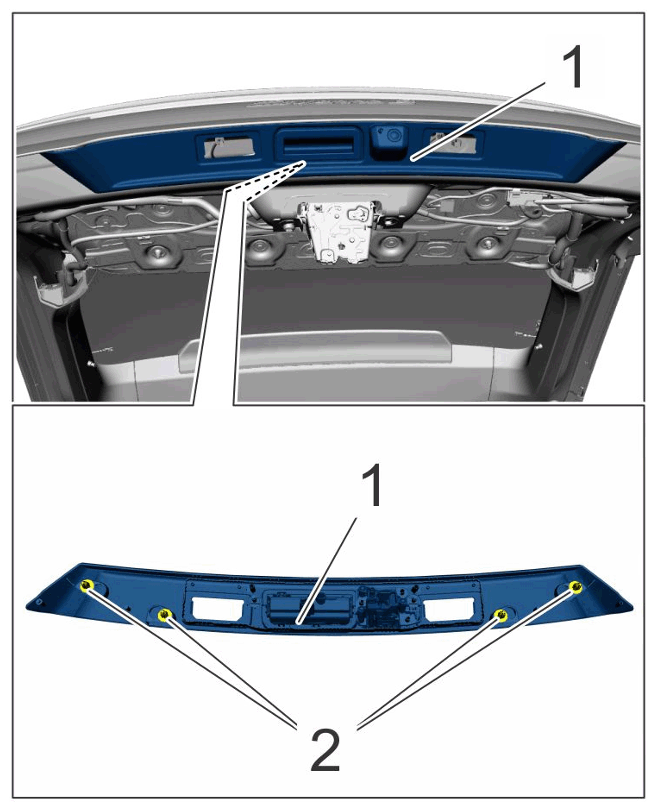

Lid trim panel
- 2.1 Unclip clips -2-
.
