Removing Rear Wheel Cover (Sport Design)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Wheel arch trims (Sport Design) cannot be removed without irreparable damage and therefore must always be replaced.

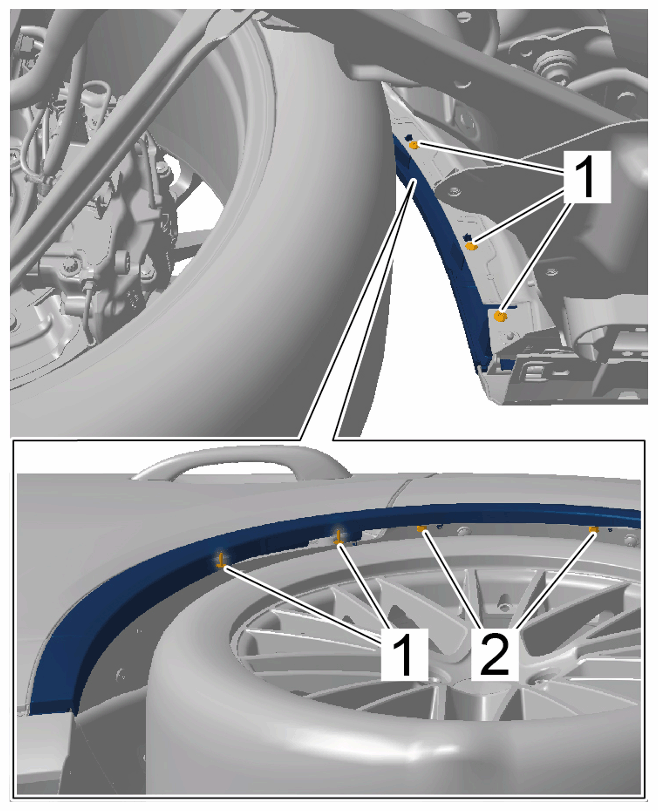

  1. Unscrew screws -1-  .
    G15238731Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  2. Unscrew nuts -2-  .
    G15238732Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Nuts

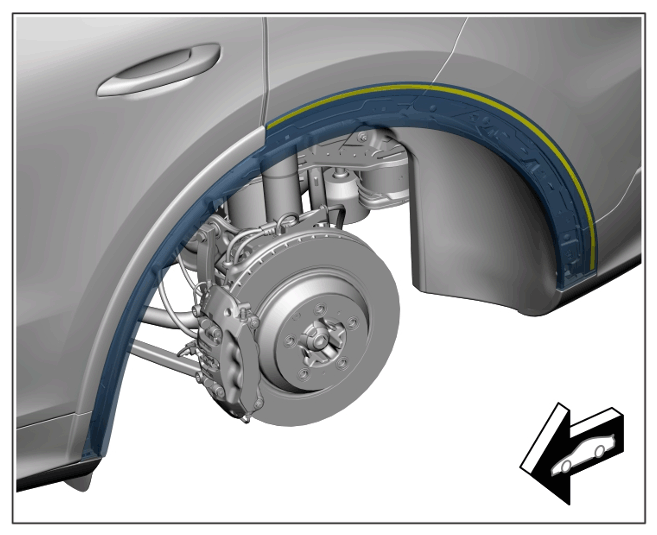

  3. Heat strips of adhesive tape in the marked area using a > V.A.G 1416 - hot-air blower  and carefully loosen rear wheel cover (Sport Design) from below using a plastic wedge.
    G15238733Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Adhesive tape

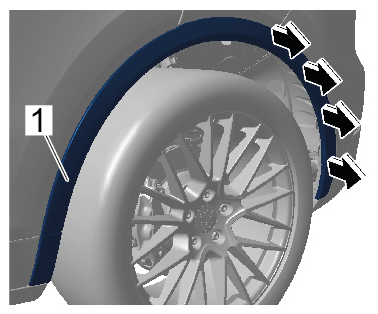

  4. Remove rear wheel cover (Sport Design) -1-  .
    G15238734Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear wheel cover (Sport Design)

    1. 4.1 Unclip rear wheel cover (Sport Design) -1-  evenly all the way around using a plastic wedge.
    2. 4.2 Remove rear wheel cover (Sport Design) -1-  upwards.
