Technical Values

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Contact force on bonding area		Contact force	50 N

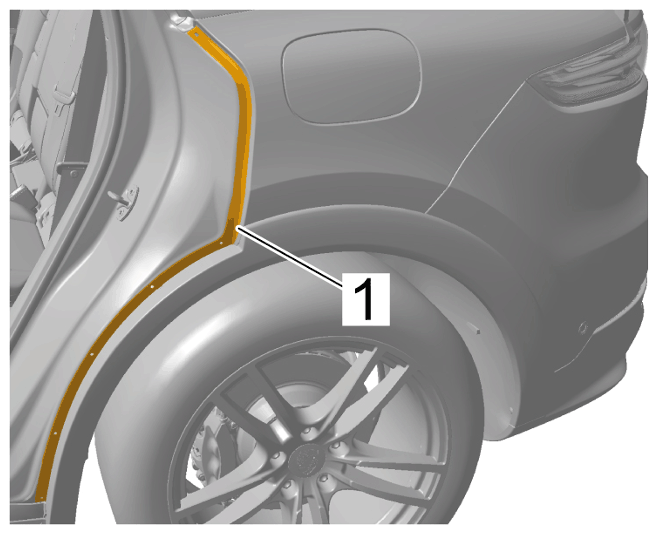

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bonding area
Sill cover to underbody	Item 1	Tightening torque	3 Nm (2 ftlb.)

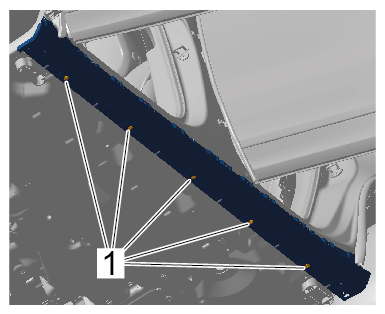

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on underbody

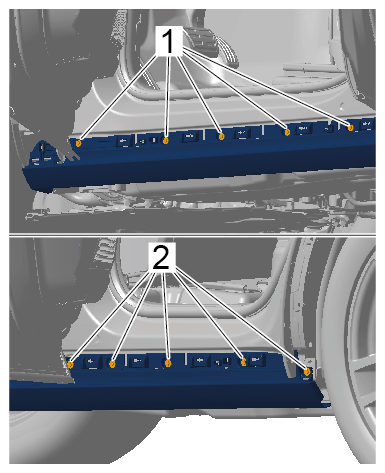

Sill cover to bodyshell	Items 1 and 2	Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
