Subsequent Work

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To achieve the contact force of 50 N, the torque wrench must be set to 5 Nm (3.5 ftlb.).

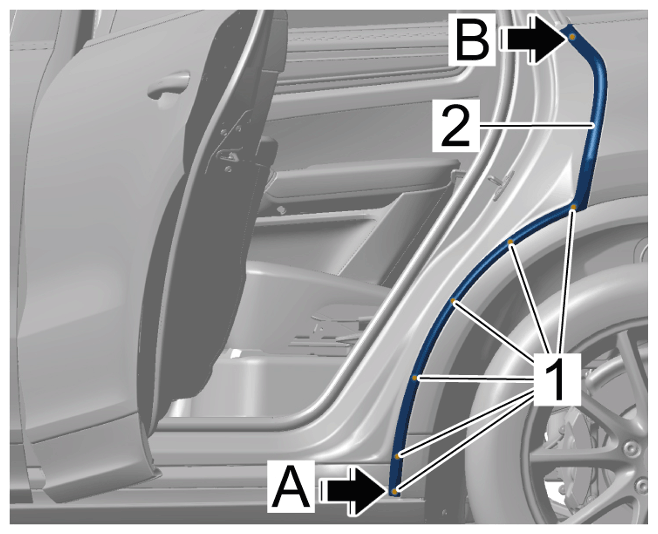

Hook outer seal for rear door -2- into the positioning pin -A - and clip it in from below by pushing it upwards. Press on outer seal for rear door -2- by applying contact force of at least > Contact force 50 N using > 9886/1 - press-on roller .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Outer seal for rear door
Install rear wheel cover.
> 664519 REMOVING AND INSTALLING REAR WHEEL COVER
Install front wheel cover.
> 661919 REMOVING AND INSTALLING FRONT WHEEL COVER
